When we look at bionic or parametric projects, the first reaction is: “Wow! But how is this even made?”
The final form looks magical — but its essence is pure BIM logic. Understanding the process behind the form is where the real design power lies.
The facades of the Sleuk Rith Institute (by Zaha Hadid Architects) have been widely explored in various software tutorials — from Rhino to Revit. Here, I present my own workflow, perception of forms, and understanding of the logic of their construction in Revit, based entirely on my personal experience.
Back in 2022, I asked myself: How far can you push vanilla Revit?
Could I recreate the Sleuk Rith Institute facades (by Zaha Hadid Architects, Cambodia) using only native Revit tools — no Dynamo, no custom families, no plugins?
The result: a fully editable, conceptual bionic massing, built entirely with in-place forms, blends, voids, and pure Revit logic. Everything stays parametric, lightweight, and transparent — perfect for teaching, competitions, and early-stage design workflows.
See the outcome of this quest in the Autodesk Community Gallery:
- Bionic Form in Revit, Without Scripts or Families
- Bionic Architecture in Vanilla Revit – No Dynamo, No Families
The bold forms of Zaha Hadid's architecture have always fascinated me. Even during my studies in civil engineering, I was driven to understand the logic and geometry required to turn such dynamic, seemingly impossible designs into a buildable reality.
The Bionic Process: 3+1 Stages of BIM Geometry
Our teaching approach breaks down the seemingly complex into a manageable, logical system. I’ve broken it down into 3 simple stages:
1. Idea & Foundation
Every object starts with a sketch.
Sometimes it exists only in your head — but in Revit, it begins with lines and reference planes. This is where the “growth logic” of the bionic form and its interaction with space come to life.
2. Framework

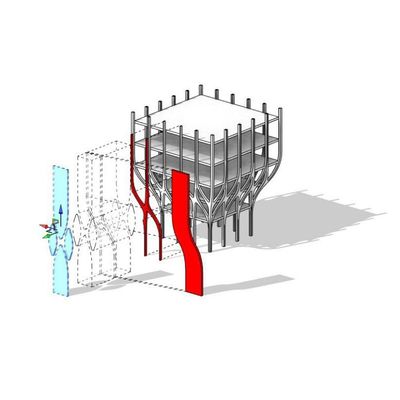

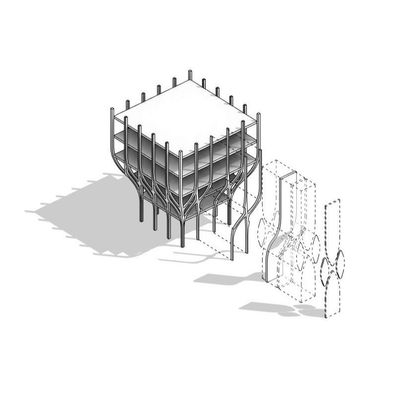

The sketch evolves into the “skeleton” of the model.
This stage is pure gold for learning — the geometry and algorithms become visible without unnecessary details.
3. Final Form (Materialization)
The framework transforms into a complete, defined object.
The Human Connection: Color and Perception in Collaboration
Design doesn’t end with geometry — it ends with perception. And perception often begins with color.
My personal observations, stemming in part from my mother's background as a child psychologist, show that the perception of a complex bionic form is often anchored by color. Color acts as a cognitive shortcut, allowing the brain to quickly classify and retain complex visual information.
Observation from Design Practice:
The importance of this insight extends beyond client presentation and into team communication. My mentor at one of my first design companies — a Chief Design Engineer with a brilliantly fast mathematical and spatial mind — was colorblind. Despite his genius, the use of standard green and red markings for conditional notations on drawings caused him—and potentially others—critical communication errors.
This experience taught me that color in BIM is not just aesthetics — it is a vital language of technical communication.
*For example, a year after seeing several complex graphic design works (art cars created with Leonardo AI) on my smartphone, my 2.5-year-old nephew could only recall the violet and red cars. He remembered the emotional code carried by the color, not the architectural or design complexity.
In BIM and Revit visualization, this insight is critical. Color—even a temporary material override—is a powerful tool for testing visual communication. It helps teams and clients quickly:
- Identify key structural or functional elements (avoiding professional communication risks).
- Establish an emotional connection to the design concept.
Color as a Critical BIM Communication Tool
The “Wow” moment is ultimately a successful marriage of precise BIM logic and masterful visual communication.
The Question for BIM Managers
My experiment raises a key question for collaborative workflows: At what point should we move from native massing to adaptive components or scripted workflows?
I explored this with the community in the forum discussion: How far can you push vanilla Revit?
Key takeaway from that discussion: Parametric thinking doesn’t begin with scripts — it begins with logic. Adaptive components and Dynamo are powerful — but at the concept stage, pure Revit often provides the fastest, most intuitive way to test an idea before formalizing it.
Explore the Workflow
Ready to turn “Wow” into “How”?
Watch the full step-by-step tutorials on my YouTube channel, KF | Archi BIM:
Framework Logic in Revit Massing (videos in Ukrainian, Revit interface in English):
REVIT Conceptual Facade | Zaha Hadid Sleuk Rith Institute | Open Class 2022
Adaptive vs In-Place Thinking:
REVIT Bionic Design | ZHA Style with Vanilla REVIT Tools
Lesson Learned
Revit already holds the DNA of parametric design — you just need to think in systems, not tools.
Let’s turn “Wow” into “How” — and then into “Now”.
Because every parametric breakthrough starts with one clear question — and the courage to explore it.
Share your vanilla Revit experiments in comments or forum. Tag me @ABR_Kate!
“This post is based entirely on my personal projects, experience, and observations. AI tools were only used for translation and stylistic polishing, not for content creation. All geometry — manual Revit.”
