ARC SLAB ON ARC WALL

[risefire12]

Hi,
im trying to model arc slab on arc wall with arc discritizaton, but the joints are not connected to each other.

and also it give two joints at the same position

so what might be the problem ?

[Romanich]

Hi @risefire12 ,

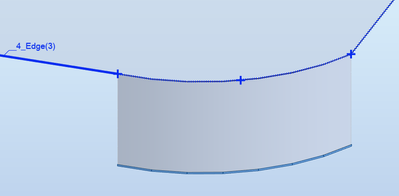

You have a different discretization for arc segments:

Please check this topic.

http://forums.autodesk.com/t5/Autodesk-Robot-Structural/Distorted-Elements-and-Mesh-Error/td-p/38238...

[risefire12]

Hi,
thank you very much for your reply.

i did set the discretization for floor to 7 same as the wall.. but still same problem

[Stephane.kapetanovic]

hi @risefire12

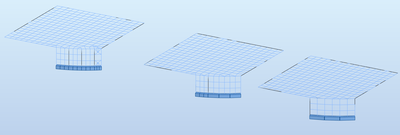

same workaround, split the circular edge into multiple arcs of the same radius and redo the vertical panels

Best regards

[Stephane.kapetanovic]

hi @risefire12

below, Split Arcs, a program to split all arcs of a contour, polyline, arc.

To use it, set the maximum length, select a contour (panel or cladding), a polyline or an arc and click ok

this program cuts each arc to the maximum length including if checked, the selected nodes. (see this short demo)

Best regards

Released 26/09/2024

[Rafal.Gaweda]

Hi ,

added to the list:

https://forums.autodesk.com/t5/robot-structural-analysis-forum/useful-addins-for-robot-api/td-p/3899...
