I'm stuck on T-spline surface is not extractable

christianiuliano
Participant
Participant

I'm stuck on T-spline surface is not extractable

christianiuliano
Participant
Participant

Could someone please help me turn this form into a 3d printable file without changing the body too much. I'm stuck trying to change the body and it's giving me a t-spline surface error.



0 Likes
Reply
Accepted solutions (1)
485 Views
4 Replies
Replies (4)

dsouzasujay
Autodesk
Autodesk

Hi @christianiuliano



The details are not enough to understand the problem.

Could you please export by File>Export *.f3d/*.f3d file to your local drive and then attach it here to a reply.

and also a video/image explaining problem will help us.


If you find my answer solved your question, please click the "Accept Solution" button

Sujay D'souza
SQA Manager
Quality Assurance
Autodesk, Inc.
0 Likes

christianiuliano
Participant
Participant

I am trying to make this form into a body so I can 3d print it. Trying to get it as an stl. Thanks

0 Likes

glenn-chun
Autodesk
Autodesk
Accepted solution

Attached is the model that I manually repaired. Your original model had the following problems:

1. Some faces intersect other faces.
Recommendation: Use Edit Form in Box Display mode to move faces, edges, or vertices to avoid self-intersections.

2. Lack of topology flows.
Recommendation: Watch Topology With T-Splines In Fusion 360.

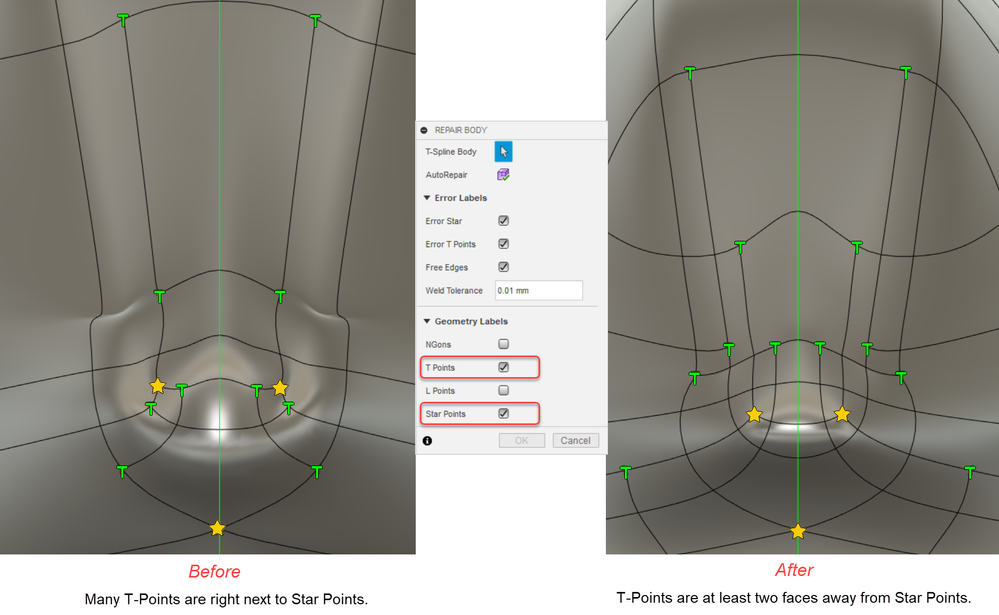

3. T-Points are right next to Star Points, causing bad surface quality.
Recommendation: Use Insert Edge or Insert Point command to position T-Points at least two faces away from a Star Point.

4. L-Points exist, causing bad surface quality.
Recommendation: Make quads (four-sided faces) to remove L-Points.

Hope this helps,

Glenn



Glenn Chun
Sr. Principal Engineer
2 Likes

christianiuliano
Participant
Participant
Thanks so much
0 Likes
