Is that possible ??

[budi67]

Hi all,

Sorry for my english, i'm French.

I try to make a Dome of R2-D2, i managed to create the panels of the top, but now I should make a hole on a face of one of these panels, is it possible?

The panels

The hole

As the surface is spherical!! I don't found

A big thanks

Best regards,

Budi67

[michallach81]

That's not that bad. Try to draw top view but with hidden arcs, then draw front view (aligne with top view). Draw constuction lines from front view to top view. That will tell you how it's build.

Today is too late for me, but tomorrow I will show you the method.

[budi67]

Thanks for your answer and your help.

It is easier when one in the habit of used a soft, It makes only a few days that I put myself in the 3d, but I am persevering lol

[michallach81 · Accepted solution]

Hi, that part did looked trivial, but it turned out it was not. On first sight I thought it was all prismatic part. But it turned out that main opening have to non-prismatic surfaces.
I think someone have made mistake. That drawing was (I suspect) done in 2D and that could cause all trouble. There is also bug in dimension. Angle 59deg seems to be just an aproximation.

Below you'll find screencast:

[michallach81 · Accepted solution]

And another one, because I forgot about one detail:

[budi67]

I am really impressed, I would never have made a success of it. One thank you for your help, I am going to study it with big attention.

A big thanks

[budi67]

I learnt many thing thanks to your screencast, thank you

I have unfortunately an even harder part (for me) to realize. See attached file

Could you tell me with which face you would begin ? I have already tried several way, but without making a success

One are going to say that I still have no eye 3d, I would like to succeed

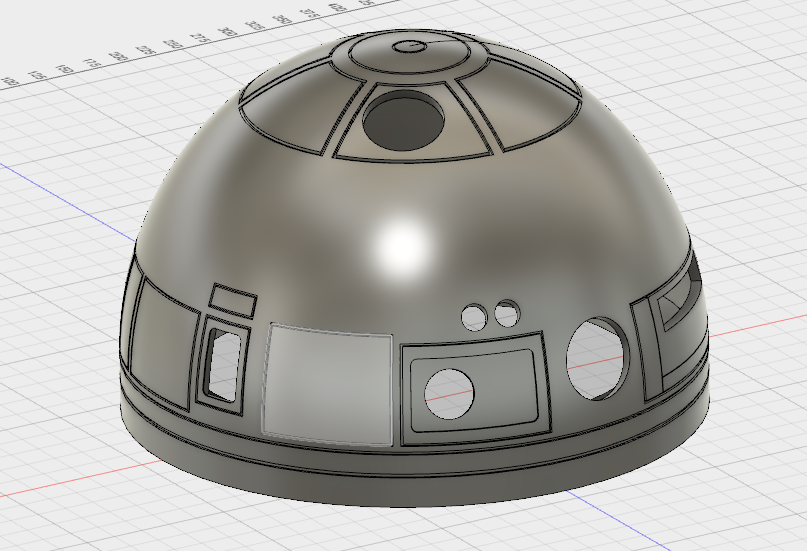

A screenshot of the progress

[michallach81]

I will look in to that task, but rather tomorrow.

[budi67]

Thank you very much for your invaluable help.

[michallach81]

First drawing in attached pdf is completly messed up. There is semi section view (from unknown plane) and on top of that is overdrawn profile, very misleading. I can say that's very bad example to start with CAD. I will help you, but I need to debug whole process. Since I know what is wrong with first page, we should get what you need.

[budi67]

Ok, thanks.

I found another but it's only a pattern, if it can help you, I always swim so much

[michallach81]

I even have found part in .step, this way I was able confirm my suspicions about meaning of first drawing. Be patient i will show you how to do it.

[budi67]

Ah, cool !!! I am really curious how to begin this part

Christophe

[michallach81]

Ok, the model is ready but I can't confirm if it's ok. Data in page #4 are inconsistent, where I would expect to see angular dimension , I found distance... There is no enough information about which face is planar to which, etc. Page #5 should serve to confirm dimensions, but these are dimensions relative to some unspecified plane.

I will record screencast tomorrow, today I will only share my file.

[budi67]

Waouhhh, seems like a children's game for you !!

I would look at this screencast with big interest

A big thanks

Christophe

[budi67]

Hi,

I have another problem, i must yet cut the dome in multiple parts to print him.

But I do not arrive there, How to cut by following the red line

A big thanks

[TheCADWhisperer]

---

@budi67 wrote:

How to cut by following the red line...

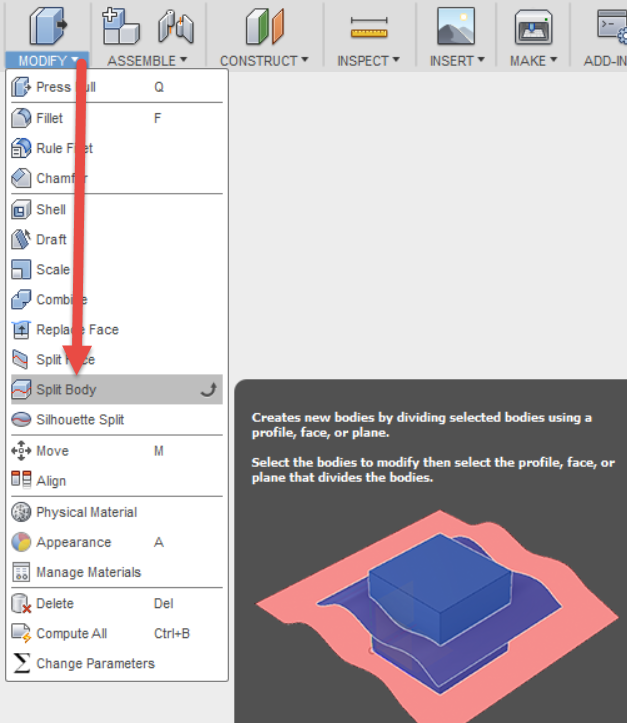

 Sketch the line and then Split Body.

If you modeled with symmetry about the origin - you might be able to use one of the origin planes for the split rather than creating a new sketch.

[budi67]

Thanks for your answer.

I don't modeled with symetry, i did not succeed like that, I cheated otherwise, it was longer, but I arrived there.

I have every time to take up one walls of every quoted which I then erased

[budi67]

Hi all,

I once again come back to you because I try to make some things, but in vain.

I would like to integrate hinges, but I does not know how to take myself there.

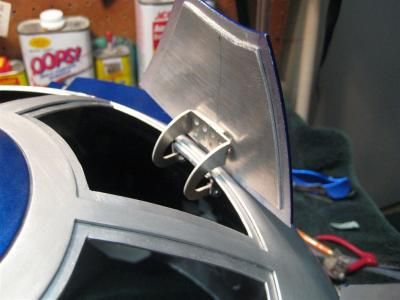

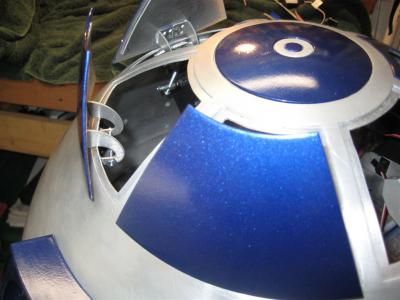

I have already tried several times unsuccessfully, I would want that panels open as on the photo, which would be the procedure to begin

The dome makes a thickness of 8mm

A big thanks

Budi67

[patrick.emin]
