Fusion 360 Custom Thread Utility

MRWakefield
Advisor
Advisor

Every time someone asked for a custom thread (or a standard that isn't included with F360) here in the forum, or I needed one myself, I would think about writing some kind of utility to make the whole process easier, and each time I would mull over whether it would be worth investing the time for such an occasional requirement.



Well, some months ago I bit the bullet and decided I'd finally write something. It's taken a few months on and off and although I really wrote it for my own use I thought I might as well share it. If you like it and feel the need to give something back then you can send me a Ko-Fi tip






It can take an existing Fusion thread file and convert it to CSV (which can be edited in your favourite spreadsheet program) and it will also open a CSV file (of the correct format!) and allow you to generate a new thread file. It has the ability to adjust the Major, Pitch, and Minor diameters by a given amount to compensate for 3D printing (an alternative to adding an offset to the faces of the thread) or for creating in-between sizes (such as a TR21x4 - used on Sodastream CO2 cylinder). I've written a basic 'Rough Guide' that's included with the app but hopefully most of it will be obvious enough.



The app also includes a form for manually entering thread data and a calculator for non-standard metric threads. This took a lot of time studying the ISO standard to get the code right for this so was very relieved to get this part working! Maybe one day, when I feel like diving in again I might take a look at adding other thread standards.



Here's a screenshot of the main Windows application window.






Anyway, I hope some of you find it useful. You can download an installer from my ko-fi page. Hopefully you won't have too many questions.



Edit: I was reminded by @HughesTooling to mention the ThreadKeeper program for syncing custom thread files. I highly recommend it for making life much easier!



EDIT: I'm in the process of porting I've now ported this over to MacOS as well. You'll find the MacOS version on my ko-fi page as well. Be aware that it hasn't been signed or notarised so you'll get the usual warnings about potential viruses 'n' stuff. If you're worried just run it through a virus scan. Anyway, I hope all you Mac users find it useful. Let me know if you have any issues and I'll try to iron them out.




Screenshot 2025-03-29 at 17.14.08.png

If this answers your question please mark the thread as solved as it can help others find solutions in the future.
Marcus Wakefield


____________________________________________________________________________________
I've created a Windows application (and now Mac as well) for creating custom thread files for Fusion. You can find out about it here. Hope you find it useful.
If you need to know how to offset threads for 3D printing then I've created a guide here which you might find useful.
If you would like to send me a tip for any help I've provided or for any of my software applications you've found useful, you can do this via my Ko-Fi page here.
____________________________________________________________________________________

26,234 Views
94 Replies
Replies (94)
Message 61 of 95

etfrench
Mentor
Mentor

Restarting the app didn't change the results, but closing Excel did.








ETFrench

EESignature

0 Likes
Message 62 of 95

MRWakefield
Advisor
Advisor

Ah yes, that'll do it. The component I use opens the CSV as  a database file and requires exclusive access to it, so if any other application has an open handle on it my app throws this error. I'll look into checking for this and do something appropriate.

If this answers your question please mark the thread as solved as it can help others find solutions in the future.
Marcus Wakefield


____________________________________________________________________________________
I've created a Windows application (and now Mac as well) for creating custom thread files for Fusion. You can find out about it here. Hope you find it useful.
If you need to know how to offset threads for 3D printing then I've created a guide here which you might find useful.
If you would like to send me a tip for any help I've provided or for any of my software applications you've found useful, you can do this via my Ko-Fi page here.
____________________________________________________________________________________

Message 63 of 95

MRWakefield
Advisor
Advisor

I've added some error handling so that when it encounters a problem opening a CSV it displays a message. This should be better than the previous error which gave no indication of what might be wrong. You can download the latest version via the same link. If you have any problems just let me know and I'll try my best to sort them out.








If this answers your question please mark the thread as solved as it can help others find solutions in the future.
Marcus Wakefield


____________________________________________________________________________________
I've created a Windows application (and now Mac as well) for creating custom thread files for Fusion. You can find out about it here. Hope you find it useful.
If you need to know how to offset threads for 3D printing then I've created a guide here which you might find useful.
If you would like to send me a tip for any help I've provided or for any of my software applications you've found useful, you can do this via my Ko-Fi page here.
____________________________________________________________________________________

0 Likes
Message 64 of 95

MRWakefield
Advisor
Advisor

It might not be important (or some of my calculations are incorrect) but some of your figures don't agree with mine. The values that immediately come to my notice are the tapping drill sizes. The "rule of thumb" is to subtract the pitch from the OD and that gives you your tapping size. In your data the tapping drill sizes would equate to a pitch of 1.5mm.



I've found an online calculator which calculates arbitrary pitches which pretty much agrees with my calculator. You might find useful.



Anyway it's just an observation and might not be important in your case, in which case just ignore me 😉

If this answers your question please mark the thread as solved as it can help others find solutions in the future.
Marcus Wakefield


____________________________________________________________________________________
I've created a Windows application (and now Mac as well) for creating custom thread files for Fusion. You can find out about it here. Hope you find it useful.
If you need to know how to offset threads for 3D printing then I've created a guide here which you might find useful.
If you would like to send me a tip for any help I've provided or for any of my software applications you've found useful, you can do this via my Ko-Fi page here.
____________________________________________________________________________________

0 Likes
Message 65 of 95

etfrench
Mentor
Mentor

These were for 3d printing threads with 20 tpi at those specific diameters.  They match the threads on some ornamentally turned wooden boxes.

ETFrench

EESignature

0 Likes
Message 66 of 95

MRWakefield
Advisor
Advisor

@etfrench wrote:

These were for 3d printing threads with 20 tpi at those specific diameters.  They match the threads on some ornamentally turned wooden boxes.


Ok, so high precision not required and as long as they fit that's all you need!

If this answers your question please mark the thread as solved as it can help others find solutions in the future.
Marcus Wakefield


____________________________________________________________________________________
I've created a Windows application (and now Mac as well) for creating custom thread files for Fusion. You can find out about it here. Hope you find it useful.
If you need to know how to offset threads for 3D printing then I've created a guide here which you might find useful.
If you would like to send me a tip for any help I've provided or for any of my software applications you've found useful, you can do this via my Ko-Fi page here.
____________________________________________________________________________________

0 Likes
Message 67 of 95

leo
Explorer
Explorer

Hi, I like the idea and your program very much, unfortunately I get this error in the thread calculator as soon as I try to select a decimal number as a pitch.



Screenshot 2025-03-03 223808.png

0 Likes
Message 68 of 95

MRWakefield
Advisor
Advisor

That's odd! It works for me:


I'm not sure what to suggest to be honest. The only thing that comes to mind is the regional settings of your OS. Your system isn't set up with a comma as a decimal separator is it?



Thanks for the screenshot btw.

If this answers your question please mark the thread as solved as it can help others find solutions in the future.
Marcus Wakefield


____________________________________________________________________________________
I've created a Windows application (and now Mac as well) for creating custom thread files for Fusion. You can find out about it here. Hope you find it useful.
If you need to know how to offset threads for 3D printing then I've created a guide here which you might find useful.
If you would like to send me a tip for any help I've provided or for any of my software applications you've found useful, you can do this via my Ko-Fi page here.
____________________________________________________________________________________

Message 69 of 95

leo
Explorer
Explorer

I am from germany, so the comma will probably be set as decimal operator, do you happen to know how to change this?

0 Likes
Message 70 of 95

leo
Explorer
Explorer

I found the setting and changed the decimal operator to a dot now it works fine. Thanks a lot for the help and the great tool.

0 Likes
Message 71 of 95

MRWakefield
Advisor
Advisor

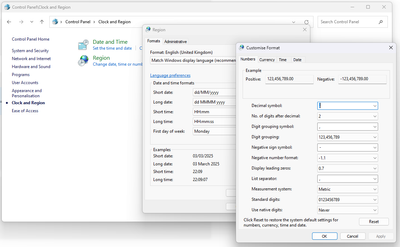

I found some information here: https://answers.microsoft.com/en-us/windows/forum/all/decimal-separator-changes-after-update-to-wind...
