Trying to create a sheet metal bracket from a Body. all different angles

[haza27]

Hello, Im trying to create a folded sheet metal bracket that bolts to multiple point. Im having trouble as all the bolt holes are not flat. Does anyone have any ideas how I would create this. Thanks for your help mounting surfacesmountain surfacesbracket trying to create

[TheCADWhisperer]

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

[haza27]

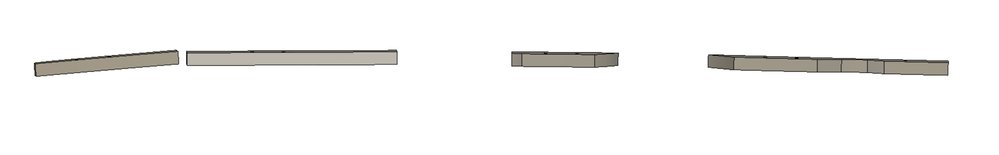

Hello, thanks here is the export of the mounting surfaces

[haza27]

Hi, thanks, I have uploaded the file

[TheCADWhisperer]

I recommend that you turn on Capture Design History and start over from scratch.

Attach your file with complete history here for help.

[haza27]

thanks I sent you the file that came from the 3d scanner. he has drawn these bodies from the scan. what I'm trying make is a L bracket that match to the holes with the correct angle. so both can bolt together

[TheCADWhisperer]

---

@haza27 wrote:

thanks I sent you the file that came from the 3d scanner. he has drawn these bodies from the scan. what I'm trying make is a L bracket that match to the holes with the correct angle. so both can bolt together

---

Now I understand your Design Intent.

In the file, turn on Capture Design History.

Create New Component.

Do your best to model the L bracket and then Attach your attempt here.

[TheCADWhisperer]

@haza27

Any progress on your attempt?

[haza27]

I had a go, I found it hard to get the faces to line up with the correct angles
