Panel Cut for only one Panel

[ByrnePM]

Hi

Is it possible to have a panel cut only show the results for one panel which it cuts through;?

[Krzysztof_Wasik]

Hi @ByrnePM

Select that panel and open it in the new window or click right mouse button and select Display for selection from context menu.

[ByrnePM]

Thanks for the quick reply,

Is it also possible to examine the diagram analysis for only the one panel?

The integral/average values are impacted greatly by the other panels, unfortunately.

My particular case is examining panel cuts through a foundation raft slab underneath a concrete core - panel cut is cutting through the walls as well as the foundation

Thanks

[Krzysztof_Wasik]

Hi @ByrnePM

Regarding your questions

Is it also possible to examine the diagram analysis for only the one panel?

Yes Diagram analysis is presented for selected panels.

The integral/average values are impacted greatly by the other panels, unfortunately.

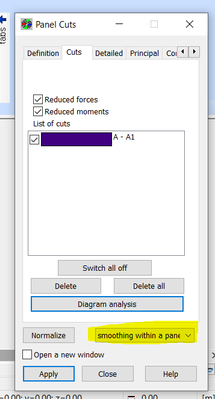

Use smoothing within a panel (or no smoothing)  to reduce that effect.

[ByrnePM]

Thanks again for your reply,

Just to help explain my query please see below snips

1 - Foundation under core with panel cuts

2 -  Diagram analysis view for SC2 - MID NS

You can see in Diagram analysis view that the core walls are being cut by the panel cut and are thus being capture in the overal integral/average results for this cut

Is there a way to just have the cut indicate information for the foundation panel?

Thanks

[Krzysztof_Wasik · Accepted solution]

Try to select required panel (foundation) before Diagram analysis generation.

[ByrnePM]

Well that was simple ....sorted. Thanks Krzysztof!
