Wood Framing for Revit 2017

[WEC17]

Greetings

I have been working with the Wood framing Extension for the past moth and I found this great video from Autodesk that shows step by step on how to accomplish the work.

But I have a problem that I can not get around it.

I draw my Studs Walls 2x and go thru the whole process of doing wall, opening, sill, plate ect.  Once I am done i save it click okay just to find out the all the framing generated by the "wood framing extension" is not centered in the Stud Wall I drew.  The center of the framing that was generated in center in inside face of the Stud Wall.

I do not know if I am missing something and why is doing that. Some has ab idea why is behaving like this.  Thanks in advance, your reply will be greatly appreciated.

PS. I can post a pic as soon as I get back to the office to give you a better idea if needed

Westrada

[WEC17]

Here are some picture of what's going on when the 2x gets generated

[martinTstewart_Adsk · Accepted solution]

Hi W Estrada,

Welcome to the Forum!  I tested this in Revit 2017.2.3 with the extension and cannot reproduce the results you’re getting.

I recommend you retry this with the following steps:

1. Make sure you’re in current update of Revit 2017 using your Autodsek Desktop App or downloading from you Autodesk account. See How to tie the Build number with the Revit update
2. Ideally, as you do these steps, use Screencast to capture the video (so you can post here if further assistance is needed). Note that Screencast allows for audio narration as well if you turn a mic on.
3. Start a new project using a default out-of-the-box (OOTB) template. I used the architecture template.
4. Create a new generic 6” wall.
5. Select wall and use the extension.

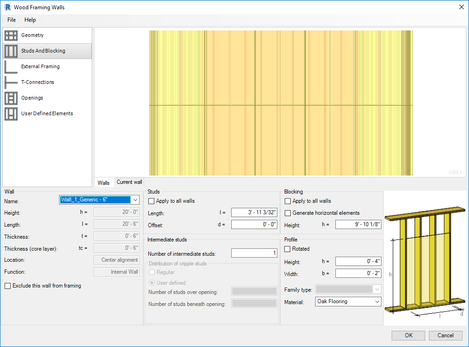

6. Take note of the settings being used in the extension dialog and hit OK.



What are the results?

If it works, then you’re in business.  If not, post the Screencast video here (or some screenshots) of the results and your extension dialog settings used.

If my reply was helpful, please give a "Kudo" or click the "Accept as Solution" button below (or both).

[WEC17 · Accepted solution]

Hello Martin

First of all thank you for getting back with me.

I did the step by step and it work perfect, I made a new wall family 2x6 Stud wall this time and I sense like everything id working fine.

once again thank you for your help.

Wallie

[Anonymous]

Just out of curiosity, is this the "Timber Framing 2015" extension you are using?

[WEC17]

I am using Revit 2017 extensions

[Anonymous]

How did you get this extension to work in 2017?

[WEC17]

I USED AN OUT OF THE BOX TEMPLATE FROM REVIT AND IT WORK FINE.

[Anonymous]

So there's a way to do the framing without the extension?  The extension is for 2015/2016, right?

[Anonymous]

I work with Revit 2017 but I can’t download the extension for wood frame  it’s not in the downloader of auto desk. Do you have it to install ?

Thanks

dominique@formatd2.be

[martinTstewart_Adsk]

At your Autodesk Account, search the Revit updates for Revit Extensions for Autodesk Revit 2017

[Anonymous]

There is no. That exist for 2018. But I have 2017.

[Aaron485]

Are wood framing walls gone for Revit 2019?

[OC3DDesign]

Same question here. Wood framing extension for 2019 and going into 2020 would be nice

[wr.marshall]

Just created this idea

Walls with Frame Layer as used in a stud wall
