Splitted axis grid lettering

Justus.Tiepmar
Submitted by Contributor on ‎10-18-2019 02:19 AM Status: Gathering Support

Splitted axis grid lettering

Dear Revit team,

i have made a splitted Axis grid lettering that in addition to the numbers (or letters) a manual text can be placed.

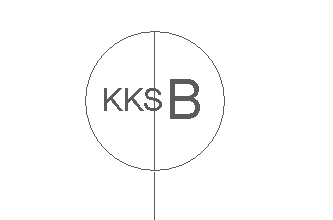

see figure 1 (horizontal section)


If now i change to the vertical section the split-line flips vertical but the text did not

see figure 2 (vertical section)






How i wish it would be:


Now my idea: i would like to have (or the ability to creat) a lettering for axis wich are splitted an stay the same way in horizontal and vertical sections.
