Split segment not working

[Anonymous]

Trying to use the split segment tool to adjust my elevation. I get the exacto knife cursor but it won't do anything when I click on the elevation line. Any idea why?

[Sahay_R]

Are you cutting through the elevation line that goes through the bubble?

[Viveka_CD]

Hi @Anonymous

Can you check if your view is pinned? This may disable the tool.

Regards,

[Anonymous]

No, it isn't pinned. Good idea to check, though.

[Anonymous]

I'm not sure what bubble you're talking about. I don't have a bubble. I'm using 2016.

[ToanDN]

@Anonymous

Can you share a more generous screenshot, showing the elevation, view, and possibly the view's properties?

[Sahay_R]

@Anonymous 2016 also has elevation bubbles. When you start, you will see them in the plan view.

[Corsten.Au]

Hi

Split the Elevation View in " PLAN VIEW "

You cannot split the Elevation view in the Elevation itself..

go to plan, select view ( Ex View:Elevation:North) , select " Split Segment "

this should work..

Cheers!

( If this doesn't work for the project, then just check in new project from the scratch and see how it works... )

[barthbradley]

@Corsten.Au: you sure about that?

[Corsten.Au]

1. If the view is a Call out, then probably Revit wont allow to split it.. Please check that..

2. the snapshot attached in the main question...

its shows " Size crop " and  " Split segment " active.. ( not greyed out )

If " Split Segment " command is selected (active ), it should greyed out .

@barthbradley Overall am just giving my best guess.. 🙂

[FAIR59 · Accepted solution]

if the view is a dependant view, you can't split the (dependant ) view. Revit goes through the motions, but changes nothing. You have the split the "parent" view.

[Corsten.Au]

Hi

I think I Cracked the solution this time...

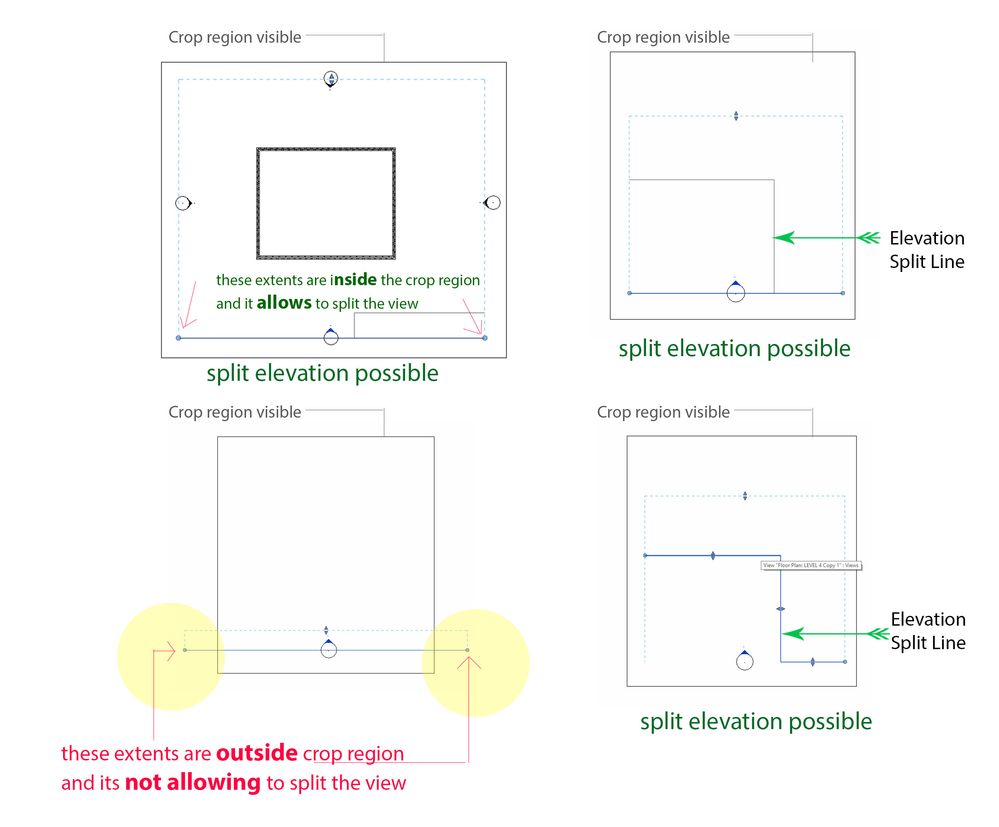

The Extents of elevation should be inside ( within ) the Crop Region.

Otherwise Revit doesn't allow to split...

( Now this is not the standard setting in Revit, different versions of Revit behaving differently )

Am pretty sure you are facing this situation..

Let us know

Cheers!

[barthbradley]

@Corsten.Au: Good one!

[m_byrum]

Depth clipping needs to be set to "No Clip".

[Anonymous]

Thanks! i was trying to do it in dependant view and now i know!

[maura.witzelHDR]

Thank you for sharing this!!

[ryanc3DR3S]

I just had the same issue, this was the issue. Thank you!

[ubald_urbanMMU23]

It worked for me! Thanks a lot!

[rcampbell]

had this issue in Revit23 and this was still my solution, thanks!

[mjonesZ7ZXY]

amazing! thank you
