Hello Awesome Community! Heart



Welcome to Friday Feature Series # 6 Create any Organic model using the Revit software



As part of this series, We want you to experiment and interested to see what kinds of great organic forms you can design with the Revit software.

You can model roofs, tensile structures or furnitureFeel free to add images or screencasts or a set of steps!

We would love to hear from you! Smiley Happy



To set the ball rolling, I've created a simple organic form using adaptive component and included steps for Creating patterns and editing divided surfaces.



41b18391-03ed-4128-a325-c742beda5c5c

Happy submitting your Friday Form - looking forward!



Best Regards,

Accepted solutions (3)
11,145 Views
24 Replies
Replies (24)
Message 1 of 25

josemukalel
Advocate
Advocate
Accepted solution

3d793d5d-8e7b-4443-8355-6b4a1587e9ca.jpgI am working for a project which need this shapes(as per pic).I got stuck about this.Please help me ..

Jose George
Architectural BIM/CAD Technician
josemukalel@gmail.com
+64 22513 0828
A KUDO is always welcomed; However, WHEN the above answer helps and/or clarifies your query; kindly mark it with ACCEPT AS SOLUTION
0 Likes
Message 2 of 25

L.Maas
Mentor
Mentor

You will have to do this with a conceptual mass. In there there are more tools available to create organic shapes.

have look at the buildz website for ideas.

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

0 Likes
Message 3 of 25

constantin.stroescu
Mentor
Mentor
  • I think the most suitable method consists in using Conceptual Mass - Sweep - a Path from a Spline through Points, and then placing different shapes in normal planes to path using Driving Curve Reference Points ( or/and Driven by Host Reference Points) positions.  Finish by Create Form > Solid Form
  • using in Project , Component Model in Place -  Swept Blend could be an option , but you must use then more segements one after another...

Constantin Stroescu

EESignature

Message 4 of 25

josemukalel
Advocate
Advocate
Accepted solution

I used  Conceptual Mass.But the groves and shapes dosent work with me as i mentioned in image.If possible can i get a screencast or any tutorial for this .please

Jose George
Architectural BIM/CAD Technician
josemukalel@gmail.com
+64 22513 0828
A KUDO is always welcomed; However, WHEN the above answer helps and/or clarifies your query; kindly mark it with ACCEPT AS SOLUTION
Message 5 of 25

constantin.stroescu
Mentor
Mentor

hi,



  I realized something very interesting in making sweeps with different profiles in Revit.

If I try to make the form from the beginning using Path and Profiles it will be a big chance not to work.

But if I’ll create first a simple sweep and then edit the Path and the Profiles it works surprisingly well , allowing almost every alteration of the form



I’ve made a description of a rough modeling process( a screencast is attached)

  1. First, in Conceptual Mass, create a row of Reference Points (at least 3 points) placed vertically one above another , select them and conect them using Spline Through Points. Turn the spline into Reference Line ( select the spline and from Properties > Identity Data > check Is Reference Line)
  2. on the previously made spline place 2, 3 or more Points ( Driven by Host). They are connected to the spline and can move only along it.The number of these point equals the number of the profiles that are thought to be used
  3. In Floor Plan View draw a few Reference Plans in order to use them as guides for the profiles point placement.
  4. On each Hosted Point’s Normal Reference Plane place Reference Points (hosted on this plane). Using the Reference Planes made in step 3. align these points to them so to form a simple shape ( a rectangle for instance)
  5. Using Spline Through Points, connect the Reference (hosted on Normal Planes ) so to create a simple rectangle ( 2 points > make a straight line, 3 points a curve) . Make these on each Normal Plane
  6. Place the the Points Driven by Host (point 2) on their final positions on the path
  7. Select the Path Reference Line and the Profile Lines ( use filter and take care not to select the points or other entities except path and profiles) and Create Form > Solid Form . A simple parallelepiped will be create.
  8. Now, the Path and the Profiles can be edited almost in any way….





Constantin Stroescu

EESignature

Message 6 of 25

chrisplyler
Mentor
Mentor

Oh Constantin,



You are a genious, but perhaps old as I am, occasionally my brain misses the easy path.



The copy function is your friend.





Message 7 of 25

constantin.stroescu
Mentor
Mentor

hi Chris,

yeh, you a right. I am here the old fashion one .

I didn't use copy because I was afraid that doing this I'll loose the Driven by Host quality of the Reference (hosted)Point. I've tried with Copy/Paste but with no result ...

So, I try it now using  your advice and I've made copies of all the points from the Normal Plane including the Hosted Point ( on Path). Even if by copy the hosted point loose its quality , there is no problem to reasign it by using Pick New Host again (to the path)

Thank you for the tip!





Constantin Stroescu

EESignature

0 Likes
Message 9 of 25

Corsten.Au
Advisor
Advisor

Hi



You have to make this in Rhino or 3ds Max and get the mass

imported as Mass family in revit and that Mass family

back in revit project..



Even if you are able to do direct massing in Revit then you will need

adaptive family in various parts..



your best bet would be get the drawings, dimensions ( section, elevation etc )

and split it into doable parts and go with it..





Corsten
Building Designer
Message 10 of 25

Alfredo_Medina
Mentor
Mentor

Why is it that most of the Screencast videos posted here are mute? That tool allows recording of voice, you know? 🙂


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Message 11 of 25

ToanDN
Consultant
Consultant
Some people hate their own voice. Myself included.
0 Likes
Message 12 of 25

Viveka_CD
Alumni
Alumni

Thanks for the idea @Corsten.Au



It will be helpful to the community if you can share a screencast.



Regards,

0 Likes
Message 13 of 25

Viveka_CD
Alumni
Alumni
0 Likes
Message 14 of 25

chrisplyler
Mentor
Mentor

What the heck is going on with this thread?



You started it in 2018. There are a bunch of posts from 2016 as replies, including one of my own. And then you've replied again in 2018.



What The Friggin Heck???





0 Likes
Message 15 of 25

Viveka_CD
Alumni
Alumni

Hi @chrisplyler



I can explain - its primary consolidation of threads especially necros and also combining similar topics - regarding organic modeling/parametric design in Revit and gauging interest level among the community.



These tools include adaptive component, sweeps, extrusion, generic family, etc.

If you come across threads regarding organic modeling using Revit, please add the link to this thread. Sorry if this caused confusion!



While I'm expecting more participation and design processes from the community, I'll share more information from the analytics if possible.



Regards,

0 Likes
Message 16 of 25

chrisplyler
Mentor
Mentor

Seems an odd thing to do for a Friday Feature thread, but okay. It's turned from, "Hey show us your organic designs," to a situation where everyone is now replying to a two-year-old thread.

0 Likes
Message 17 of 25

Viveka_CD
Alumni
Alumni
Accepted solution

@chrisplyler Yeah hoping this attracts more responses, for it to qualify as a feature - that adds fuel to a user's imagination translated using modeling tools to create unique and complex forms in Revit.



We want the community to try and experiment using tools within Revit - nothing beats its parametric benefits and break the myth that Revit is not the easiest tool to create (multiple)curved forms or fluid shapes.



Organic modeling within Revit has not been ventured into as much and complex modeling is associated with formula driven modeling.

I'm posting a few examples from the community hoping there is an initiative to explore more in this arena:

The possibilities are limitless -  creating parametric trusses, tensile roofs, decorative elements, slatted furniture etc



Once we experiment the tools within Revit then we can take it further by integrating macros and codes.

For code specialists, Dynamo is one of the best ways to solve complex shapes and automate the design process (an infrastructure example)

More information where firms connect Dynamo to Revit, establishing rules that automated the creation of detailed models.





Regards,







Message 18 of 25

Viveka_CD
Alumni
Alumni
0 Likes
Message 19 of 25

syman2000
Mentor
Mentor

Hi,

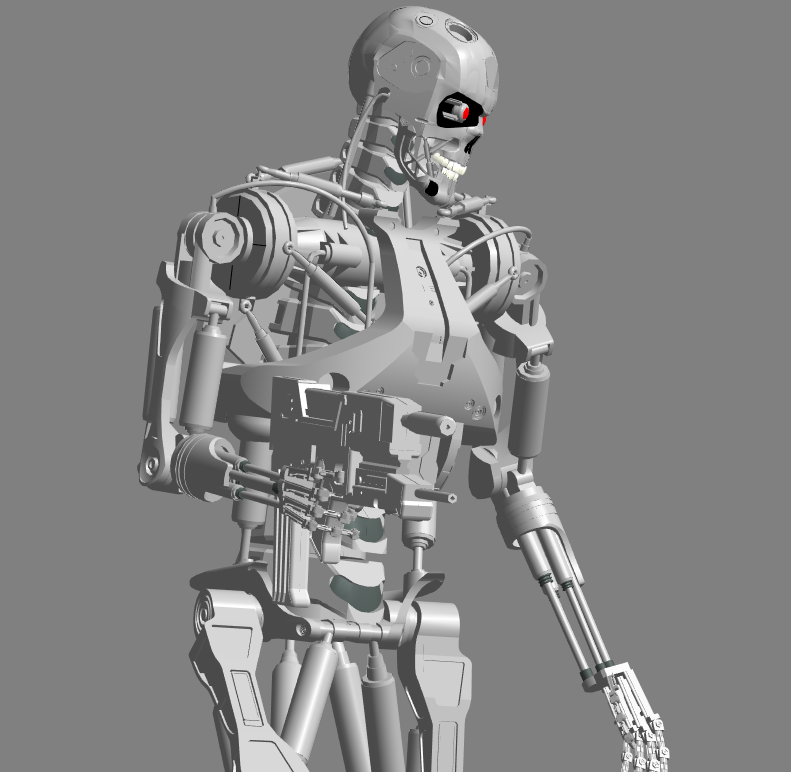

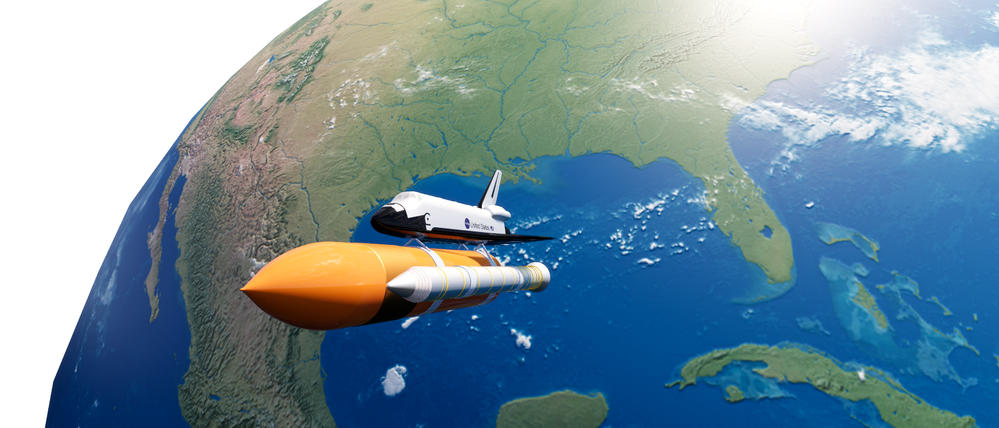

Just want to showcase what you can built with Revit using only point and spline through point(s). These are few example the stuff you can built inside Revit without needing any special software or dynamo.



Goku Transform.pngGoku Complete.pngstormtrooper 3.pngstormtrooper 2.pngstormtrooper 1.pngT-800 finish 2.pngT-800 finish.pnghomer3d revit.pngSPACE SHUTTLE REVIT EARTH.pngmario revit finish.png



Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Message 20 of 25

Viveka_CD
Alumni
Alumni

Hi @syman2000



Thanks for sharing!:)



Did you create them in Revit entirely?

Mario looks perfect!



Regards,



0 Likes
