Unwrap - Fx Parameter

[ivanildo.b]

How to get automatic dimension in the Fx table?

When the dimensions of the model change fx is changed.

Do you have any rules in Ilogic or VB that automatically put in the fx table?



[bradeneuropeArthur]

I can not give you exact that.

I have an add in that creates a user parameter ie Length; Width and Thickness, but no dimension in the sketch.

would that help you?

[ivanildo.b]

I'm trying another way.
Insert dimension to capture and use in the fx table?

[bradeneuropeArthur]

I understood that yes. But the projecten loop is not always dimensionable!

[Ralf_Krieg]

Hello

Is there always only one Unwrap feature?

Is there always only one WorkSurface?

Is the unwrapped surface always a circle?

If so, you can use iLogic below to get the radius as parameter "radius". Add this rule to the event trigger "on model geometry change". Every time you change the model, the parameter will be updated.

This rule is for this one specific situation your screenshot shows.

Dim oPartDoc As PartDocument = ThisDoc.Document
Dim oUOM As UnitsOfMeasure = oPartDoc.UnitsOfMeasure
Dim oCompdef As PartComponentDefinition = oPartDoc.ComponentDefinition
Dim oWorkSurface As WorkSurface = oCompdef.WorkSurfaces.Item(1)
Dim oSurfaceBody As SurfaceBody = oWorkSurface.SurfaceBodies.Item(1)
Dim oEdge As Edge = oSurfaceBody.Edges.Item(1)
Dim oCircle As Circle = oEdge.Geometry
Dim dRadius As Double = oUOM.ConvertUnits(oCircle.Radius ,"cm",oUOM.LengthUnits)
Dim oParam As UserParameter
Try
	oCompdef.Parameters.UserParameters.Item("radius").Expression=dRadius & oUOM.LengthUnits
Catch
	oCompdef.Parameters.UserParameters.AddByExpression("radius", dRadius, oUOM.LengthUnits )
End Try

[ivanildo.b]

Thanks for the attention!
I'm trying to understand your answer.
I took the test, I was doubted.
I'm sending a drawing to explain it better.
The result of the routine has to be radius 575 mm. Thank you for your attention!

[Ralf_Krieg]

Hello

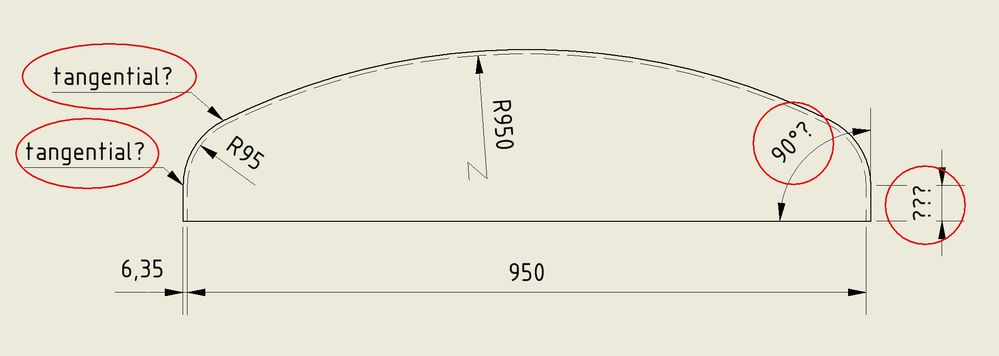

In such a case it would be much more helpful to upload the ipt file. I think there are some dimensions missing (please see picture).

Anyway, when your parts are always a revolve, there could be an alternative way we can try.

Dim oApp As Inventor.Application=ThisApplication
Dim oPartDoc As PartDocument = ThisDoc.Document
Dim oUOM As UnitsOfMeasure = oPartDoc.UnitsOfMeasure
Dim oCompdef As PartComponentDefinition = oPartDoc.ComponentDefinition
Dim oWorkSurface As WorkSurface = oCompdef.WorkSurfaces.Item(1)
Dim oSurfaceBody As SurfaceBody = oWorkSurface.SurfaceBodies.Item(1)
Dim oEdge As Edge = oSurfaceBody.Edges.Item(1)
Dim dLoopLength As Double=oApp.MeasureTools.GetLoopLength(oEdge)
Dim dRadius As Double = oUOM.ConvertUnits(dLoopLength / 2 / System.Math.PI,"cm",oUOM.LengthUnits)

Dim oParam As UserParameter
Try
	oCompdef.Parameters.UserParameters.Item("diam").Expression=dRadius & oUOM.LengthUnits
Catch
	oCompdef.Parameters.UserParameters.AddByExpression("diam", dRadius, oUOM.LengthUnits )
End Try

[iva.btblan]

R. Krieg
RKW Solutions GmbH
www.rkw-solutions.com

Total joy. Excellent! Wonderful! Problem solved!

What path should I take so that in the future I can solve a similar problem?

Thanks for your attention in helping me!!

Ivanildo

[Ralf_Krieg]

Hello

As long as the unwrapped face is a circle, take the second scipt. The first isn't stable and would not use it anymore.

[ivanildo.b · Accepted solution]

Excellent! Thank you!
