Section Arrows & View Label Styles
There are many posts regarding this:
'Changing a section callout:
'Autodesk Employee comments:
--------------------------------------
Did you find this reply helpful ? If so please use the 'Accept as Solution' or 'Like' button below.
Inventor 2018.2.3, Build 227 | Excel 2013+ VBA
ERP/CAD Communication | Custom Scripting
Machine Design | Process Optimization
iLogic/Inventor API: Autodesk Online Help | API Shortcut In Google Chrome | iLogic API Documentation
Vb.Net/VBA Programming: MSDN | Stackoverflow | Excel Object Model
Inventor API/VBA/Vb.Net Learning Resources: Forum Thread
Sample Solutions:Debugging in iLogic ( and Batch PDF Export Sample ) | API HasSaveCopyAs Issues |
BOM Export & Column Reorder | Reorient Skewed Part | Add Internal Profile Dogbones |
Run iLogic From VBA | Batch File Renaming| Continuous Pick/Rename Objects
Local Help: %PUBLIC%\Documents\Autodesk\Inventor 2018\Local Help
Ideas: Dockable/Customizable Property Browser | Section Line API/Thread Feature in Assembly/PartsList API Static Cells | Fourth BOM Type
Hi
I use a similar method to all the posted questions and suggestions.
The only difference is, I place the Section line on a non printable layer, and also changed it's colour for quick reference.
Also, the insertion points are at the bottom of the arrow leader line, they then snap to the section line, and will move with the section line.

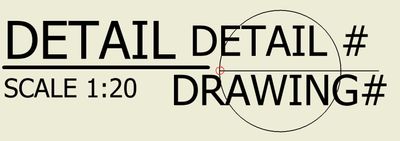

Here is a snippet of my process.
Thought I would add one last thing.
The detail reference symbol does not snap to anything, and has to manually be dropped into place, if the view moves, the symbol does NOT follow. Be careful to check before printing.
This would be a good place for someone to step in with a fix....Hint.
Anyway, here is some more info:
See the file attachment as well.
