Hello everybody,
I need some help in my existing rule. This rule in assembly makes custom iProp in all parts and subassemblies with qty number from BOM. If there are several assemblies, it can also recalculate the number of pieces.
This rule works ok for me, but I need to write number of pieces also in parts of Inseparable subassemblies in Parts Only. This means that the rule must be changed first weld Subassemblies to Normal Bom Structure, then rewrite the number of pieces in Parts Only and then to refund weld Subassemblies to Inseparable Bom Structure.
I rally don't know, how this can be done.
Or someone has a better idea or solution?
Thank you a lot for any help.
Jernej Puc
Sub Main 'Get current document doc = ThisDoc.Document '- - - - - - - - - - - - -Reading the number of pieces from the assembly 1. time- - - - - - - - - - - - Dim o_st_kos_Assembly As String = iProperties.Value("Custom", "st_kos") Dim st_kos_Assembly As String = "" 'create an empty string to pass the digits into Dim CharArray() As Char = o_st_kos_Assembly.ToCharArray() 'split the string into characters and pass into an array For Each chara As Char In CharArray If Char.IsDigit(chara) Then st_kos_Assembly = st_kos_Assembly & chara 'look at each character in the array, if it is a digit then concatenate it into the test2 string End If Next '- - - - - - - - - - - - -Writing the number of pieces in BOM - - - - - - - - - - - - Dim oAssyDef As AssemblyComponentDefinition = doc.ComponentDefinition 'Get the BOM object Dim oBOM As BOM = oAssyDef.BOM 'enable the Parts Only View oBOM.PartsOnlyViewEnabled = True 'Get the Parts Only view of the BOM Dim oBOMViewPO As BOMView = oBOM.BOMViews.Item("Parts Only") 'declare variable for each BOM row. Dim oBOMRowPO As BOMRow 'For each row in the Parts Only BOM, do the following For Each oBOMRowPO In oBOMViewPO.BOMRows 'Set a reference to the primary ComponentDefinition of the row Dim oCompDef As ComponentDefinition = oBOMRowPO.ComponentDefinitions.Item(1) 'get the full filename associated to the component in the row. ex: c:\temp\part1.ipt Dim CompFullDocumentName As String = oCompDef.Document.FullDocumentName Dim CompFileNameOnly As String 'get the location of the last backslash Dim index As Integer = CompFullDocumentName.LastIndexOf("\") 'get the filename only from the full filename CompFileNameOnly = CompFullDocumentName.Substring(index+1) 'MessageBox.Show(CompFileNameOnly) On Error Resume Next 'get the Qty value in the current row Dim Qty As String = oBOMRowPO.TotalQuantity * CDbl(st_kos_Assembly)'Multiply by the number from assebly 'check to see if the component is a library part, cc part or read only. Dim IsLibCCReadonly As Boolean = LibCCReadonlyChecker(CompFullDocumentName) 'if the file is NOT a library part, cc part or read only. If IsLibCCReadonly = False Then 'set following custom iproperty to equal the QTY from the row iProperties.Value(CompFileNameOnly, "Custom", "st_kos") = Qty End If Next 'at this time, the qty value for all parts have been copied to the custom property.'next, the following code will cycle through only the subassemblies. 'if the Structured BOM view is enabled then... If oBOM.StructuredViewEnabled Then 'If show First Level is set then turn it off. This will set it to All Levels If oBOM.StructuredViewFirstLevelOnly Then oBOM.StructuredViewFirstLevelOnly = False End If Else 'enable the Structured BOM view oBOM.StructuredViewEnabled = True 'set the FirstLevelOnly to false therefore make it All Levels oBOM.StructuredViewFirstLevelOnly = False End If 'Get the Structured view of the BOM Dim oBOMViewStruc As BOMView = oBOM.BOMViews.Item("Structured") 'declare variable for each BOM row. Dim oBOMRowStruc As BOMRow 'Create a blank array(list). This will be used to store a list of all subassemblies for comparing if the subassembly already exist. Dim arrSubAssemblyList As New ArrayList 'call a subroutine to cycle through the structured BOM. It will need the collection of rows, the subassembly list, and 1 is the initial parentqty. Call QueryBOMRowProperties(oBOMViewStruc.BOMRows, arrSubAssemblyList, 1) End Sub Private Sub QueryBOMRowProperties(oBOMRows As BOMRowsEnumerator, arrSubAssembly As ArrayList, oParentQty As Integer) 'declare a incrementer variable Dim i As Long 'for each row in the structured BOM For i = 1 To oBOMRows.count 'get the row based on the incrementer Dim oBOMRowStruc As BOMRow = oBOMRows.item(i) 'get the component definition assocated with the row Dim oCompDef As ComponentDefinition = oBOMRowStruc.ComponentDefinitions.Item(1) Dim oQty As Integer 'If the component is an assembly and it's bom structure is Normal then do the following. else do nothing If TypeOf oCompDef Is AssemblyComponentDefinition And oCompDef.BOMStructure = BOMStructureEnum.kNormalBOMStructure Then 'get the full filename associated to the component in the row. ex: c:\temp\subassembly.iam Dim CompFullDocumentName As String = oCompDef.Document.FullDocumentName Dim CompFileNameOnly As String 'get the location of the last backslash Dim index As Integer = CompFullDocumentName.LastIndexOf("\") 'get the filename only from the full filename CompFileNameOnly = CompFullDocumentName.Substring(index+1) 'MessageBox.Show(CompFileNameOnly) '- - - - - - - - - - - - -Reading the number of pieces from the assembly 2. time- - - - - - - - - - - - Dim o_st_kos_Assembly As String = iProperties.Value("Custom", "st_kos") Dim st_kos_Assembly As String = "" 'create an empty string to pass the digits into Dim CharArray() As Char = o_st_kos_Assembly.ToCharArray() 'split the string into characters and pass into an array For Each chara As Char In CharArray If Char.IsDigit(chara) Then st_kos_Assembly = st_kos_Assembly & chara 'look at each character in the array, if it is a digit then concatenate it into the test2 string End If Next 'get the qty of the row and multiply by the parent qty. 'oQty = oBOMRowStruc.ItemQuantity * oParentQty If CDbl(st_kos_Assembly)=1 Then oQty = oBOMRowStruc.ItemQuantity * CDbl(st_kos_Assembly) * oParentQty 'Multiply by the number from assebly Else If (st_kos_Assembly)>1 Then oQty = oBOMRowStruc.ItemQuantity * CDbl(st_kos_Assembly) 'Multiply by the number from assebly End If 'create a variable that will be used to get the qty of the subassembly if it was used elsewhere Dim additionalQty As Integer = 0 'if the subassembly list is not empty then... If arrSubAssembly.Count <> 0 Then 'create a counter. this will be used to determine which item in the subassembly array (list) when it finds a match. 'this counter will be used to edit that item with the new qty. Dim counter As Integer = 0 'for each item in the subassembly array (list) starting at 0 (first item) to last item For j As Integer = 0 To arrSubAssembly.Count-1 'get the location of the colon Dim commaindex As Integer = arrSubAssembly(j).indexof(":") 'get just the file name Dim CompName As String = arrSubAssembly(j).substring(0,commaindex) 'if the file name of the current row matches the current item in the subassembly array (list) then... If CompName = CompFileNameOnly Then 'set the additional qty to the qty found in the subassembly array (list) additionalQty = arrSubAssembly(j).substring(commaindex+1) 'set the counter equal to the item in the subassembly array (list) counter = j 'since a match is found, we need to exit the for loop so that counter no longer increments. 'so Set j To the number of items in the subassembly array. this will exit out the for loop. j = arrSubAssembly.Count Else 'increase the counter counter += 1 End If Next 'if additional qty was not changed then there was no match. It will be a new item in the subassembly array (list) If additionalQty = 0 Then 'add the subassambly to the subassembly array (list) arrSubAssembly.add(CompFileNameOnly & ":" & oQty) Else 'if it did find a match, then update the qty for that item in the subassembly array (list) arrSubAssembly(counter) = CompFileNameOnly & ":" & oQty + additionalQty End If Else 'add the first subassembly to the list. It will add the filename and the qty separated by a colon. ex. subassembly.iam:2 arrSubAssembly.add(CompFileNameOnly & ":" & oQty) End If 'check to see if the component is a library part, cc part or read only. Dim IsLibCCReadonly As Boolean = LibCCReadonlyChecker(CompFullDocumentName) 'if the File Is Not a library part, cc part Or read only. If IsLibCCReadonly = False Then 'set following custom iproperty to equal the QTY from the row plus the additional qty value iProperties.Value(CompFileNameOnly, "Custom", "st_kos") = oQty + additionalQty 'Recursively iterate child rows if present. If Not oBOMRowStruc.ChildRows Is Nothing Then 'recall the subroutine, push the childrows of the sub, sub assembly array (list), and the qty of the subassembly Call QueryBOMRowProperties(oBOMRowStruc.ChildRows, arrSubAssembly, oQty) End If End If End If Next End Sub Private Function LibCCReadonlyChecker(filename As String) As Boolean ' Get the active project Dim oProject As DesignProject = ThisApplication.DesignProjectManager.ActiveDesignProject ' Get all the library paths Dim oLibraryPaths As ProjectPaths = oProject.LibraryPaths Dim oLibraryPath As ProjectPath 'for each library path in the list of all library paths For Each oLibraryPath In oLibraryPaths 'get the library path Dim oLibs As String = oLibraryPath.Path 'if the file is in a library path then Return True If filename.Contains(oLibs) = True Then Return True End If Next 'if the file is in the CC location then Return True If filename.Contains(oProject.ContentCenterPath) = True Then Return True End If 'get read only status Dim File_Attr As Long = System.IO.File.GetAttributes(filename) 'if the file is readonly or readonly and archieve then Return True If File_Attr = 1 Or File_Attr = 33 Then Return True End If 'return False if it's not a library, CC or a Readonly part. Return False End Function

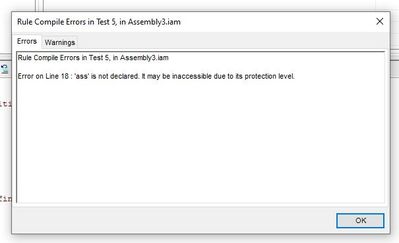

Solved! Go to Solution.
