direction face in sheet metal

[MIRKO_G]

Hello everybody.
I notice a problem in the inventor sheet metal environment by performing the following operations:
- New sheet metal part
- I create an offset plane from the central plane
- I mirror the plane just created and as a reference I use the central plane
- On this last plane, I create a sketch and apply the Face function
The preview shows me a direction of application of the thickness, while at the time of creating the solid, the direction appears to be the opposite.
I found this thing only in the sheet metal environment (not with extrusion) and on the 2022, 2021 and 2020 versions.
Do others find this anomaly?
I attach example in 2022 version and images.

[bradeneuropeArthur]

I see the same and that is not correct.

@johnsonshiue Would it be possible that you investigate this with the development team to see how this can be solved.

Thanks in advance

[gmwi]

I'm on '21 and it does as it should. You might want to check your settings. Send the example in a ver '21 and I'll see if I can find it. I don't have that problem.

[bradeneuropeArthur]

I have seen various changes in Inventor 2022.

This could be possibly one of them!

Regards,

[johnsonshiue · Accepted solution]

Hi Mirko,

How are you doing? This is an interesting find. I am able to reproduce the behavior in all releases on my machine. It is not unique to 2022. This has something to do with the default direction of a Face. In theory, like Extrude, it should default to the normal direction of the sketch (workplane). In this case, the normal direction is the opposite. I cannot explain the behavior. I will work with the project team to understand it better.

Many thanks!

[MIRKO_G]

Hello,
I am attaching the file in the 2021 version.

[bradeneuropeArthur]

---

@johnsonshiue wrote:

Hi Mirko,

How are you doing? This is an interesting find. I am able to reproduce the behavior in all releases on my machine. It is not unique to 2022. This has something to do with the default direction of a Face. In theory, like Extrude, it should default to the normal direction of the sketch (workplane). In this case, the normal direction is the opposite. I cannot explain the behavior. I will work with the project team to understand it better.

Many thanks!

---

That would be great @johnsonshiue

[gmwi]

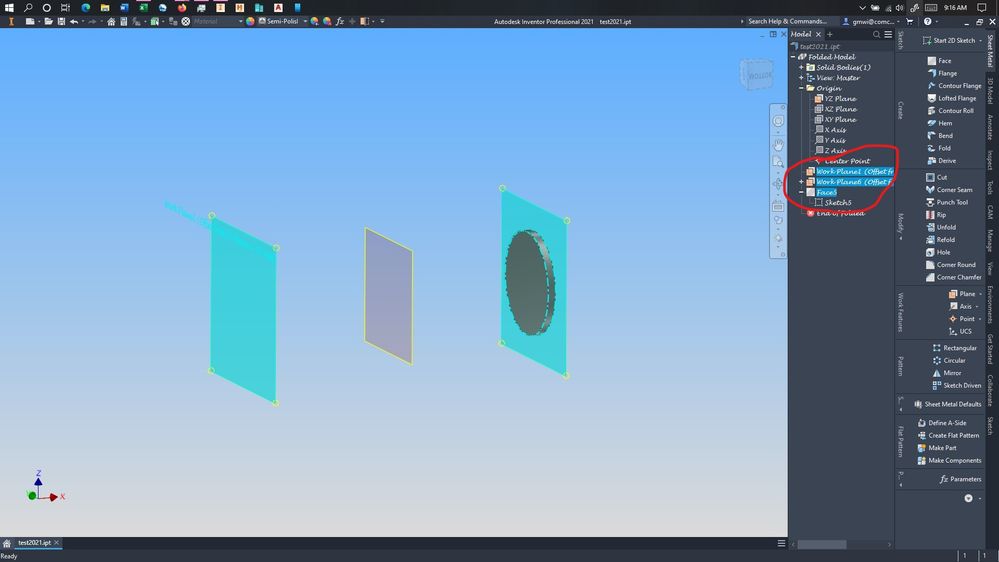

Problem solved sort of. The glitch is with the mirrored function. When you just offset a plane to the same distance then it works as normal. Your sketch is taking direction flow from the referenced plane. That's an approach that I normally don't use. I generally work with created plane and then mirror the features. If you change that procedure then it should be smoother for you.

[gmwi]

I forgot to ask if your in Australia or Ireland. Things are backwards in those counties.
