Sheet metal flange tool weird new behavior - Fusion

Miha-M
Advocate
Advocate

Why it is behaving like this. It suppose (and it used to) to make one continuous sheet metal piece bent 5 times.  Now it treats every polyline se a separate body?????
Anyway to make it behave like it used to? Treating all the connected polylines as single piece and applying bends at connections as well. fusion.jpg







This post has been edited due to: @heather_tracy added the product to the title to help more users find this topic via external search.

0 Likes
1,717 Views
22 Replies
Replies (22)
Message 2 of 23

Miha-M
Advocate
Advocate

EDIT:
It is even worse.  It creates a single body sheet metal part that it then fails to create flat pattern for,....  😵

0 Likes
Message 3 of 23

g-andresen
Consultant
Consultant

Hi,

works fine here



Please share the file for reply.

File > export > save as f3d on local drive > attach to post



günther

0 Likes
Message 4 of 23

Miha-M
Advocate
Advocate

Here you go

0 Likes
Message 5 of 23

g-andresen
Consultant
Consultant

Hi,

There is obviously an error in the sketch in the connection of the lines at the origin, but it could not be corrected in the sketch.
Therefore, I created a new sketch that produces the expected result.



(view in My Videos)





günther

0 Likes
Message 6 of 23

Miha-M
Advocate
Advocate

I get that. But up until now you did not have to do it in one go. Lines were automatically merged to one polyline (so to speak) you could start in the center and then added line. I do it like this all the time because a lot of times i change / add sheet metal profiles afterward.  This effectively prevents changing base sketch line once you close the tool. It should not do that. This severely limits what this tool can do.......

0 Likes
Message 7 of 23

g-andresen
Consultant
Consultant

Hi,


@Miha-M  schrieb:

Lines were automatically merged to one polyline (so to speak) .


However, this was not done correctly in your case. That is why I deleted the lower part of the sketch in this screencast and reinserted it.



(view in My Videos)



I was unable to reproduce the erroneous behavior in several attempts.





günther

0 Likes
Message 8 of 23

Miha-M
Advocate
Advocate

So what did I do  wrong?
why doesnt merge the lines if merging point is in coordinate origin?  If i add the line on the opposite side it works just fine....



0 Likes
Message 9 of 23

Miha-M
Advocate
Advocate

edit:  im out of office now...



0 Likes
Message 10 of 23

Miha-M
Advocate
Advocate

here is a video

0 Likes
Message 11 of 23

g-andresen
Consultant
Consultant

Hi,

In some tests, I noticed that the phenomenon only occurs when the profile starts at the origin and another element is added there.

If you create the primary profile without binding it to the origin, you can add elements and, if necessary, subsequently bind the docking position to the origin using a constraint.



Perhaps @johnsonshiue can take a look at this.



Günther

0 Likes
Message 12 of 23

johnsonshiue
Community Manager
Community Manager

Hi Folks,



I took a quick look at this design. I have seen the behavior before. It seems to be related to the open profile recognition. Creating a surface from the same sketch may lead to the two separate surface body also. Somehow the horizontal line (150mm) is constrained to a point (probably a corrupted projected origin?), not to the end point of the vertical line. As a result, it leads to a split. If I delete both the horizontal line and the vertical line, and recreate them, the profile will be properly recognized.

I suspect this is a corruption case. If we can reproduce it from scratch, it will be very helpful to finding a fix.

Many thanks!



Johnson Shiue ([email protected])
Software Test Engineer
0 Likes
Message 13 of 23

TheCADWhisperer
Consultant
Consultant

@johnsonshiue

@Miha-M

I deleted the Coincident Constraints and moved the lines away from the Origin. (I did not delete the lines.)

I then applied a single coincident and left them away from the Origin, observed the same unexpected behavior.



Edit: I then tried deleting EITHER the vertical line or the horizontal and replacing.  Replacing EITHER of these lines returned to expected behavior.

Message 14 of 23

Miha-M
Advocate
Advocate

So i tried this at home on my hobby license fusion. After updating to the latest version this behavior occurs. Dont know which version i was on before update. i kind of resist updating if not necessary.  So it must be a bug in latest update?

0 Likes
Message 15 of 23

GC_CC
Contributor
Contributor

Hello, I have the same problem. See https://forums.autodesk.com/t5/fusion-design-validate-document/changes-in-sheet-metal-flange-tool/td...

It is indeed a bug and will hopefully be fixed soon.

0 Likes
Message 16 of 23

Miha-M
Advocate
Advocate

So i moved the lines out of the origin and join them, then move the back to origin. An this happened


0 Likes
Message 17 of 23

Miha-M
Advocate
Advocate

So how log does it usually take to squish a bug like this?

0 Likes
Message 18 of 23

Miha-M
Advocate
Advocate

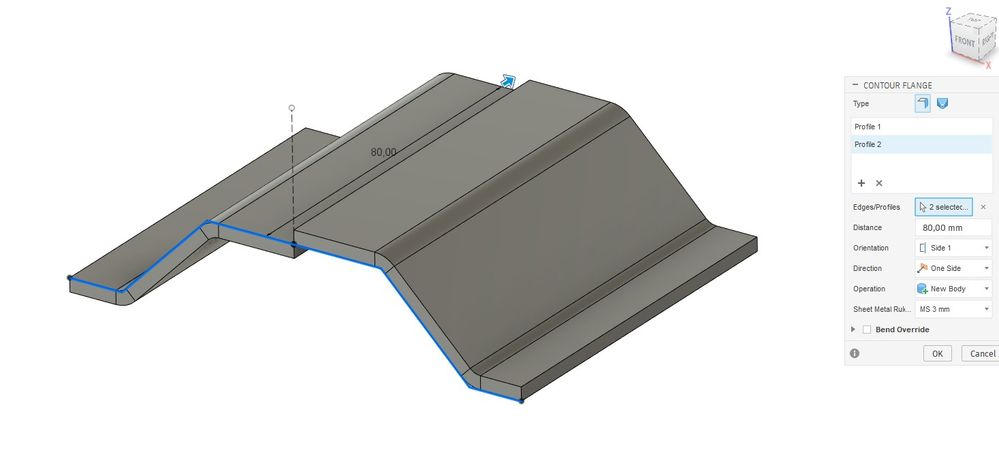

I see this hasn't been resolved in last update
sheetmetal flange tool.jpg

0 Likes
Message 19 of 23

Miha-M
Advocate
Advocate

Still not fixed on

2606.1.36 x86_64

0 Likes
Message 20 of 23

johnsonshiue
Community Manager
Community Manager

Hi Miha,



I am sorry I don't know why it has not been resolved. I thought it was. Maybe I misunderstood the issue to begin with. Are you trying to merge the new Flange to the existing one? The panel shows it is creating a new body.

Many thanks!



Johnson Shiue ([email protected])
Software Test Engineer
