how to draw a spiral

Anonymous
Not applicable

i cant seem to find the way to draw a spiral in a sketch... is there a way?

32,531 Views
17 Replies
Replies (17)
Message 2 of 18

PhilProcarioJr
Mentor
Mentor

@Anonymous

Look at this thread is this what you want?

https://forums.autodesk.com/t5/design-validate-document/is-there-a-way-to-create-a-helix-spline-in-fusion-360/m-p/5893904#M37294



Phil Procario Jr.
Owner, Laser & CNC Creations

0 Likes
Message 3 of 18

Anonymous
Not applicable

i dont understand how this would be relevant.. can a helix be a spiral? as i know a spiral, it is constantly increasing/decreasing the radius (of the vertual circle at a certain point on the spiral)...

0 Likes
Message 4 of 18

Anonymous
Not applicable

with spiral i mean spirale...

0 Likes
Message 5 of 18

Anonymous
Not applicable

The steps will be the same as in @PhilProcarioJr 's link, but to create an increasing/decreasing diameter, you will need to adjust the "Angle" setting when you create the coil.

0 Likes
Message 6 of 18

PhilProcarioJr
Mentor
Mentor
Message 7 of 18

HughesTooling
Consultant
Consultant

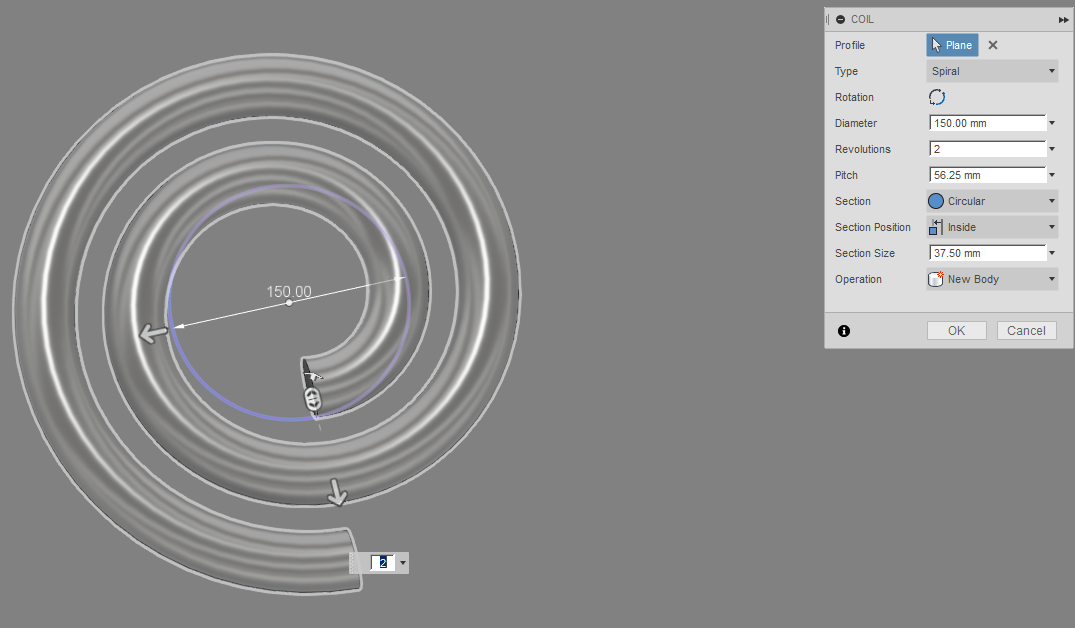

Just in case you hadden't noticed coil has an option to make a Spiral.




After creating the solid spiral you can extract the seam using project in a sketch.




Mark

Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


0 Likes
Message 8 of 18

Anonymous
Not applicable

yes, i noticed now... works if you just want a spiral without the need to move it aroud (rotate for exemple) or edit the pitch... since once you deleted the body just to have the projected sketch, editing brings back the original position and even the body as well.





0 Likes
Message 9 of 18

PhilProcarioJr
Mentor
Mentor

@Anonymous

There is no spiral sketch tool, as far as I know this is the only work around there is.



Phil Procario Jr.
Owner, Laser & CNC Creations

0 Likes
Message 10 of 18

donsmac
Collaborator
Collaborator

Inkscape has a spiral tool where you can adjust the parameters of the spiral. Save it out as an .svg file and import it into Fusion.

Here's a screenshot inside inscape:

Screen Shot 2016-03-22 at 2.29.32 PM.jpg

Message 11 of 18

RandyKopf
Collaborator
Collaborator

Thanks that is a great tip!!!

Randy Kopf

http://desktopartisan.blogspot.com/


If my post is helpful, press the LIKE Button If it resolves your issue, press Accept as Solution! Have a great day!
Message 12 of 18

Anonymous
Not applicable

Hate to revive this topic from the dead but when I insert the svg it's unextrudable... I can't select the sketch. What do I need to do to extrude it?Screen Shot 2017-12-20 at 9.32.28 PM.png

0 Likes
Message 13 of 18

davebYYPCU
Consultant
Consultant

Presume you want a spiral wall -



in Patch you can extrude the line/s, but Modelling requires a closed profile,



Can tell which one from the pic.

0 Likes
Message 14 of 18

Anonymous
Not applicable

Yes thank you!

0 Likes
Message 15 of 18

martinfry111
Explorer
Explorer

Great tips on spirals especially using inkscape. To extrude a scroll, create a thin offset of the spiral and then close the ends.

0 Likes
Message 16 of 18

HughesTooling
Consultant
Consultant

@martinfry111 You can also extrude the sketch in the patch workspace as a surface then thicken. Thicken has the advantage of a symmetric offset if the spiral sketch is the centre line.



Mark

Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Message 17 of 18

francoisfournier
Community Visitor
Community Visitor

You can draw the spiral with Inkscape.

Then import the .svg into Fusion.

Then Thin Extrude the sketch.



Hope it can help.

0 Likes
Message 18 of 18

francoisfournier
Community Visitor
Community Visitor

You can draw the spiral with Inkscape.

Then import the .svg into Fusion.

Then Thin Extrude the sketch.



Hope it can help.
