Appearance in Fusion 360 Drawing Sheet Issue

[krishna.pula]

The components are being applied to an old design file, then linked to the drawing file. However, they do not appear in the same way as other components. Below is a screenshot of the drawing file showing this issue. I am experiencing this issue after the latest update.

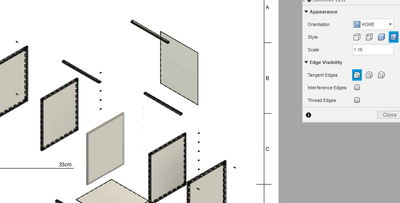

   (Storyboard screenshot in the drawing sheet)

 (Model screenshot in the drawing sheet)

As of now, I am deleting this storyboard or model in the drawing file & then reapplying it so that it shows correctly. The process is similar to starting with a fresh drawing file. Please Let me know what the solution is.

[rohit.bapat]

Hello @krishna.pula

Sorry to know that you are facing this issue. Can you please share the f3z file with us so that, we can debug this case?

Also, I wanted to know if changing the style through View edit dialog?

[krishna.pula]

Please find the attachment below F3z File old file sample.

[rohit.bapat · Accepted solution]

Thank you! I can reproduce the issue with the given sheet but not from scratch. An easier way I found out to see the correct view is by changing the style to something different then back to shaded with edges through view edit dialog (double click the view)

I will take this file to the team to dig a bit deeper to find the cause of this issue.

[krishna.pula]

Thank you for your support. Previously same drawing files. This process has been updated previously with no problems. I tried what you suggested and it worked.

[krishna.pula]

Hello @rohit.bapat,

Please find the below screenshot. The screenshot below shows some files that even this type of technique does not work. If it is Version 1 F3z, then what you suggest will work.
