dynamic block pipe

[francesco.fernandez.mail]

Hi,i need to create an elettrical pipe simbol with dynamic block.

here a link with a youtube video show what i have to do.

https://youtu.be/ZiXSHe2Fmfc

regards and thanks in advance.

bye

[h_s_walker]

I made this one ages ago

[francesco.fernandez.mail]

cool,thank you.but why in my block the 141 color pattern won't stretch?

thanks

[h_s_walker]

Post your block. It sounds like your hatch is not associative, but hatches in blocks can cause problems.

[francesco.fernandez.mail]

ok,here the file,thanks again.bye

[h_s_walker]

You need to create it as a block then we can start to point you in the correct direction.

[francesco.fernandez.mail]

ops,sorry,i forget i was revert everything.

here the right file.thanks again

bye

[h_s_walker]

It's because your hatch wasn't associative. See the attached drawing.

Be careful with the block though. I have found through my own experience that sometimes even if the hatch is associative in the block, it somehow loses that associativity and then you get the problem of the hatch not stretching as it should.

[francesco.fernandez.mail]

mmm,i check before saving the block if the hatch is associative,and it was.now works properly,thank you so much,you save my ass. if you also knew why the base point does not rotate despite having included it in the polar stretch you would be great.thanks

edit:can you explain how you had force the associative parameter in this file?thanks

[h_s_walker · Accepted solution]

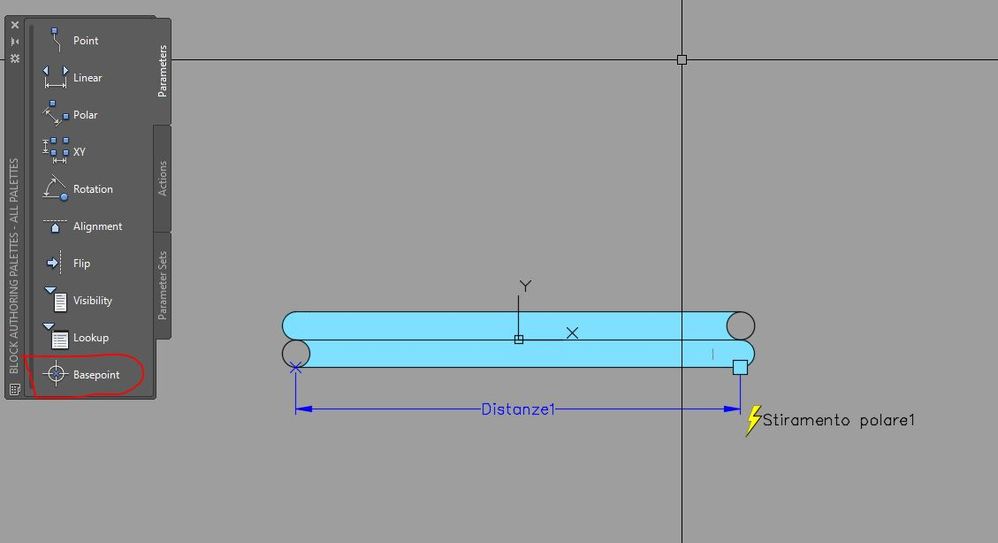

See the three images attached. Add the BASEPOINT parameter to your block and then add it to your polar stretch and the basepoint will move. The other two images show you how to have a hatch be associative

[francesco.fernandez.mail]

woooooow,you great.

thank you so much.
