Generate the Volume cut fill

4 REPLIES 4
SOLVED
Reply
Message 1 of 5
ishaq03
437 Views, 4 Replies

Generate the Volume cut fill

I am  attaching a link where you will get formation surface and OGL surface Please generate the cut fill volume in civil3d, I have been tried lot of times in my civil3d software when I am going in Volume dashboard and keeping OGL as a base surface and formation as a comparison surface fatal error is appearing in my civil3d software please  I will be a very glad if any body generate the volume and send me via link if file size more than requirement here.

Tags (1)
4 REPLIES 4
Message 2 of 5
ishaq03
in reply to: ishaq03

Message 3 of 5
Pointdump
in reply to: ishaq03

Hi Syed,
Thanks for posting your XML's.
I'm getting Fatal Error too. I don't know why.
Dave

Dave Stoll
Las Vegas, Nevada

EESignature

64GB DDR4 2400MHz ECC SoDIMM / 1TB SSD
NVIDIA Quadro P5000 16GB
Windows 10 Pro 64 / Civil 3D 2024
Message 4 of 5
Pointdump
in reply to: ishaq03

Syed,
I had some time this morning, so here's what I did:
1. Import both XML's to create Surfaces.
2. Use Data Extraction to create XYZ files for both surfaces.
3. Create RCP files in ReCap from the XYZ files.
4. In a new metric drawing re-create both surfaces from ReCap point clouds.

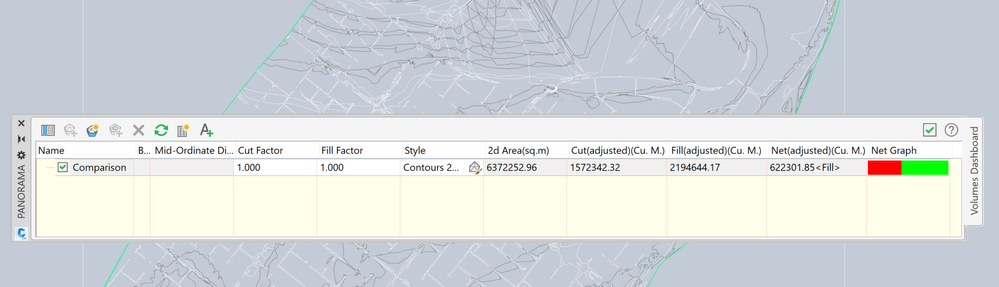

5. Then Volumes Dashboard works.



Link: https://we.tl/t-auTz2qh2Gg


Dave






Dave Stoll
Las Vegas, Nevada

EESignature

64GB DDR4 2400MHz ECC SoDIMM / 1TB SSD
NVIDIA Quadro P5000 16GB
Windows 10 Pro 64 / Civil 3D 2024
Message 5 of 5
ishaq03
in reply to: Pointdump

Thanks a lot, for your prompt response  and giving some time to tackle this task to finish in other method.
