Using multi-segment grid for 3D property line

[cbt990]

Is there a reason why the PL grid will only appear once in a given section?

[barthbradley]

PL Grid?  You mean a Grid using a "PL" Line Type?  Maybe the Grid isn't captured within the View Range?

Maybe the Grid is askew to the View.  Betcha that's it.

[cbt990]

So it works here.

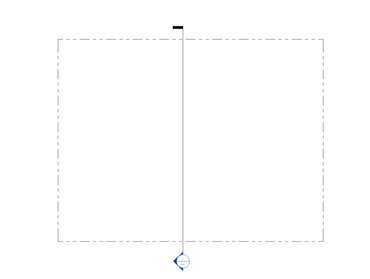

The same principle is what I am doing in the project, except as you can see only one segment is visible:

and it works with a new dummy PL

[barthbradley]

I'm not clear what you mean. Post the file so I can help.

[cbt990]

I think it may be an issue with curved segments. In which case this strategy for 3D property lines won't work. Do you have any other suggestions?

[barthbradley · Accepted solution]

---

@cbt990 wrote:

 Do you have any other suggestions?

---

Yah.

https://revitoped.blogspot.com/2011/07/massing-property-boundary.html
