"The quantity takeoff is incorrect due to the column and wall junction."

"The quantity takeoff is incorrect due to the column and wall junction."

soyhannnnn
Advocate Advocate
440 Views
3 Replies
Message 1 of 4

"The quantity takeoff is incorrect due to the column and wall junction."

soyhannnnn
Advocate
Advocate

"The quantity takeoff in Revit is incorrect because the column continues through the wall. What should be the solution for this?"





0 Likes
441 Views
3 Replies
Replies (3)
Message 2 of 4

barthbradley
Consultant
Consultant

Unjoin and split the wall in two at the column.



...switch join order might get you there as well.





https://www.youtube.com/watch?v=dxwfIbEw-24&t=3s

0 Likes
Message 3 of 4

vitorbortoncello
Advisor
Advisor

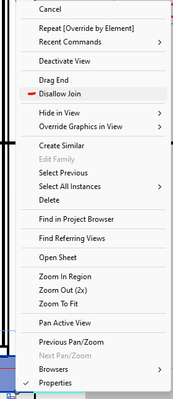

To complement BarthBradley's reply, it's also important to disallow join at wall ends to ensure accurate wall length and quantity takeoffs

A resposta te ajudou? Não esqueça de curtir e aceitar como solução!


Vitor Bortoncello | Arquiteto | BIM Manager


dAutodesk Certified Professional

0 Likes
Message 4 of 4

ToanDN
Consultant
Consultant

To get correct quantity take off, create parts from building components and schedule parts material take-off. You can further refine parts geometry by enable geometry grips to stretch parts, along with merge/ exclude parts, without messing up with the original building components.
