line weights for model in place component

11 ANTWORTEN 11
Antworten
Nachricht 1 von 12
jason
1585 Aufrufe, 11 Antworten

line weights for model in place component

trying to model in place a trim board.  when printing, it prints very dark at edges.  how can i change the line weight to print lighter?



11 ANTWORTEN 11
Nachricht 2 von 12
barthbradley
als Antwort auf: jason

You can change the Projection and Cut Line Weights of the Model Category itself through Object Styles. Turn OFF Thin Lines (TL) so you can see how it will look when printed.



Go to Manage Tab=>Additonal Properites=>Line Weights to see what the pen wieghts (thicknesses) are for each view scale.

Nachricht 3 von 12
bdrdesign
als Antwort auf: barthbradley

I have the same question and this does not answer it.

Nachricht 4 von 12
barthbradley
als Antwort auf: bdrdesign


@bdrdesign wrote:

I have the same question and this does not answer it.




Thanks for sharing that nugget of info.





set Silhouettes to "none" (under Graphic Display Overrides).

Nachricht 5 von 12
ToanDN
als Antwort auf: bdrdesign

Create subcategories under the model in place category.  Edit your in place model and assign subcategories to elements and linework.  Define line weights for the subcategories via Object styles. Override them via VG if you want to deviate them from object styles

Nachricht 6 von 12
bdrdesign
als Antwort auf: ToanDN

Bingo… just figured that out. Thanks for the confirmation.



Didn’t mean to offend was a little frustrated here. When you model in place and select a category the line weight assigned to that category in object styles is set. There is no way to change the category of the modeled in place element once selected when modeling. I just realized I could create a sub-category and assign a line weight as you describe.



Thanks again.

Nachricht 7 von 12
cscott12ZX5LX
als Antwort auf: jason

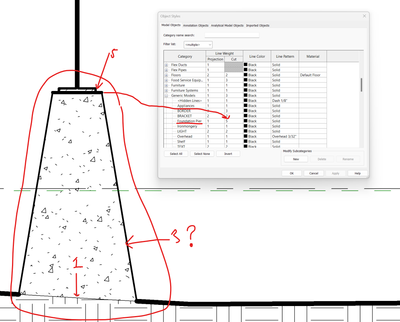

I followed the instructions in this thread and made a subcategory "Foundation Pier". I change its cut line and it only changes the top line. How do I change all the cut lines in this model in place generic model in section?




Nachricht 8 von 12
cscott12ZX5LX
als Antwort auf: cscott12ZX5LX

Anyone?

Nachricht 9 von 12
barthbradley
als Antwort auf: cscott12ZX5LX

I'd rather not guess. Post the file (rvt) and I'll tell you exactly what's going on.

Nachricht 10 von 12
ToanDN
als Antwort auf: cscott12ZX5LX

Edit the model in place, select the 3d element and assign it to the subcategory. If it is 2d lines or 2d regions, select the lines or the regions sketch lines and assign them to the subcategory cut or projection lines.



The work is no different than for loadable families.

Nachricht 11 von 12
cscott12ZX5LX
als Antwort auf: ToanDN

All of sudden changing the object styles cut line works after opening the model today (which you can see in my previous image didn't work). Revit 2025 appears to have many glitches.

Nachricht 12 von 12
ToanDN
als Antwort auf: cscott12ZX5LX


@cscott12ZX5LX wrote:

All of sudden changing the object styles cut line works after opening the model today (which you can see in my previous image didn't work). Revit 2025 appears to have many glitches.

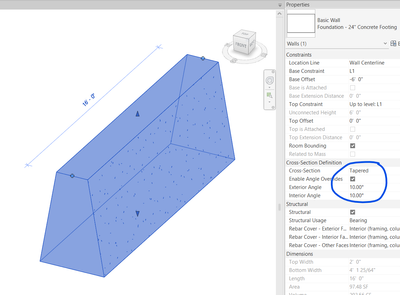

Why don't you use tapered wall?
