How to edit Seciton Boxes

nataldom
Community Visitor
Community Visitor

Is there any way to edit the section box boundary? I have a section cut that looks like this:




( cuts the model like ---|___> this )

And if not, is there a way to create two section boxes at the same time in the model?



0 Likes
282 Views
3 Replies
Replies (3)
Message 2 of 4

jay_colcombe
Mentor
Mentor

You cannot Split or Create Multiple in one action for Section Boxes but you could just Duplicate Views - You can in a 3D View > Right Click the View Cube > Orient to a View and edit the Section Box Handles

Note! In most instances the Section Box is Hidden in the View






Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
0 Likes
Message 3 of 4

syman2000
Mentor
Mentor

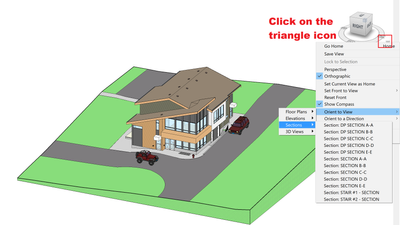

If you have setup section, you can set the 3d section box to follow the section cut. Click on the triangle icon and go to orient to view and choose which view you want the 3d view to follow.











Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
0 Likes
Message 4 of 4

barthbradley
Consultant
Consultant

You can rotate the box.
