hello there,
we have a project where the furniture, casework and plumbing elements from a linked model are showing with different outline colours on different floor plans. see image attached (one is white and another one is grey halftone as we need).
-this is only happening on the linked model
-we are linking the model per linked view
-the linked model is showing halftone on all floor plans but when linked if changes
- the families are the same
- view template is the same
-VV settings are the same for all elements.
any clue what can be happening?
Many thanks
Claudia
YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION
no they are not ticked.
I tried playing around with all the settings maximum I can do is to change for a really light colour that does not show properly in the plan.
I tried ticking the halftone just for the furniture in the custom settings in the view template does not work as well... tried to clear overrides and apply halftone does not work as well.
is just strange because is just 2 floor plans and all of them have the same view template with the same settings!

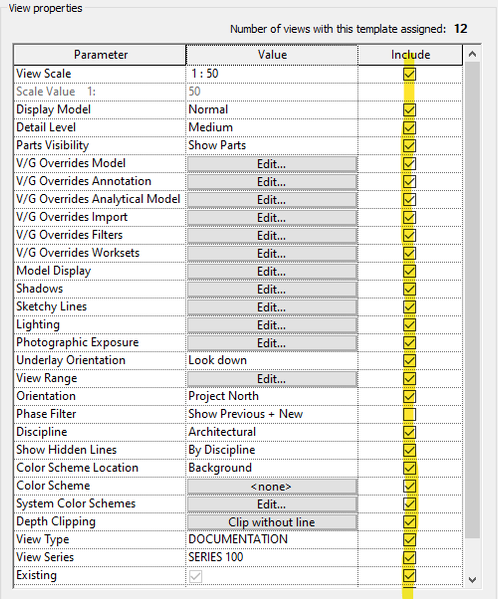

Check that the elements you are having trouble with have their settings included in the view template.
Does the linked model use a view template for the plan views? It may have slight differences in colour overrides applied...
What is the phase filter set to? Also do you set your discipline as Architecture or Coordination?
That is one of the 3 mentioned possibilities in the previous reply!! Did you check the rest?
Alternatively, Attach or DM a link to the model to check it and suggest accordingly
YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION
both are a NIA floor plan using the same template and same settings. and we set as Architectural for the discipline.
Color scheme is set to background of foreground?!
If it is set to foreground it can cause that effect (lines appear like washed off halftone).
