Family elements visibility toggle

[angelinaeZ95LW]

I created a family with a detail element but only want it shown in a certain view of a project. Is there a way I can coordinate that detail of the family to just a specific view/workset but toggle it off for another of the same project?

[Mike.FORM]

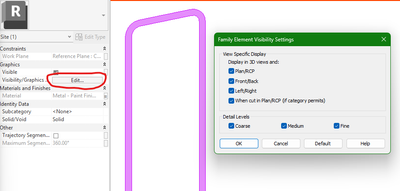

edit the family and select the element and open the VG settings. Then uncheck the views you do not want to see the item in ever.

Unchecking a box will mean that the item will never show in that view even if the you have a parameter associated with the "visible" field.

Then add a visibility instance parameter so you can toggle it off individually for specific families.

[RDAOU]

@angelinaeZ95LW

Visibility settings and visibility parameter would toggle the visibility on/off in all and/or multiple views. To toggle visibility in certain views, you need to use subcategories.

• edit the family
• Open Visibility Graphics (VG) / Object styles
• add new subcategory (example: Mutons)
• exit object styles
• select the extrusion/sweep or whatever that object is
• in the properties panel set it to the new subcategory
• save and load back into project

in the project view where you do not wish to see the trims/muttons in one specific elevation; go to visibility graphics of that view and uncheck the subcategory

alternatively you could also use nested shared components for this objects and in the model use filters to hide them

[angelinaeZ95LW]

I want the family to be on elevations views, however I only want the detail of the family to be on one elevation view. If I do this, it will change it for both elevations.

[Basam.Yousif]

If you're drawing detail elements to represent the family, then you will need to use SYMBOLIC lines. These lines are only visible in a view of the same type of the one they were drawn - meaning: Only in a plan or front\back elevation, etc.

Once you create these elements, you can assign them to a sub-category

You can control that in the model

[angelinaeZ95LW]

This helped a lot, thank you!

[RDAOU]

---

@angelinaeZ95LW wrote:

This helped a lot, thank you!

---

@angelinaeZ95LW  you are welcome... @Basam.Yousif seems to have polished the reply for you with screenshots in case you are new to a Revit and not familiar with Subcategories
