Elements appear transparent

18 ANTWORTEN 18
GELÖST
Antworten
Nachricht 1 von 19
cbt990
1019 Aufrufe, 18 Antworten

Elements appear transparent

Hello,



I am trying to adjust the display settings for these mailbox elements, so that the curtain grids behind them do not show through. I have tried overrides by element, no luck.






Revit is amazing
18 ANTWORTEN 18
Nachricht 2 von 19
barthbradley
als Antwort auf: cbt990





Are you in Wireframe View?



Doesn't look like any of the Mailbox geometry in visible in elevation - or maybe the mailbox material is transparent.

Nachricht 3 von 19
ToanDN
als Antwort auf: cbt990

Check VG for the category transparency.  And share the mailbox family for less guessing.

Nachricht 4 von 19
barthbradley
als Antwort auf: cbt990

Mailbox courtesy of BIMObject:



Mailbox is "see-through" in Project:




Edit Mailbox Family, check these boxes in the Visibility Settings for the large extrusion representing the box and then Reload Family into the Project:










Result back in the Project:










Nachricht 5 von 19
cbt990
als Antwort auf: barthbradley

This worked for part of the mailbox but not the entire object.




Revit is amazing
Nachricht 6 von 19
barthbradley
als Antwort auf: cbt990

Post the family and I'll fix 'er up for you.

Nachricht 7 von 19
cbt990
als Antwort auf: barthbradley

https://we.tl/t-qfSmAfACdh
Revit is amazing
Nachricht 8 von 19
barthbradley
als Antwort auf: cbt990

Still, the same workflow. Select the Geometry in the Family, press Visibility Settings and check boxes.




Nachricht 9 von 19
ToanDN
als Antwort auf: cbt990


@cbt990 wrote:

This worked for part of the mailbox but not the entire object.















Aside from fixing the transparency, shouldn't you place curtain grids around the mailbox area, change the curtain panels behind the mailboxes to Empty System Panels to create the opening for the mailboxes?  Or are they surface mounted?

Nachricht 10 von 19
cbt990
als Antwort auf: barthbradley


Trying the same workflow:






Revit is amazing
Nachricht 11 von 19
barthbradley
als Antwort auf: cbt990

The Mailbox was probably  meant to use Masking Regions in Elevation, and the creator forgot to add them.  Maybe they got lost in the mail.  :zwinkerndes_Gesicht:

Nachricht 12 von 19
ToanDN
als Antwort auf: cbt990


@cbt990 wrote:


Trying the same workflow:







See my reply above regarding boxing out a space in the curtain wall for the mailboxes.  As shown, your curtain panels may be on the same plane as the face of the mailboxes so they still show.  Share a 3D view for confirmation.

Nachricht 13 von 19
barthbradley
als Antwort auf: cbt990

What's the f'ing deal here, @cbt990???  Solution goes to @ToanDN???  For what???



Are you guys sleeping together or something?



See ya, Wouldn't want to be ya.

Nachricht 14 von 19
cbt990
als Antwort auf: cbt990

Everyone has received credit

Revit is amazing
Nachricht 15 von 19
cbt990
als Antwort auf: barthbradley

Sorry, I have given your solution credit!
Revit is amazing
Nachricht 16 von 19
cbt990
als Antwort auf: barthbradley

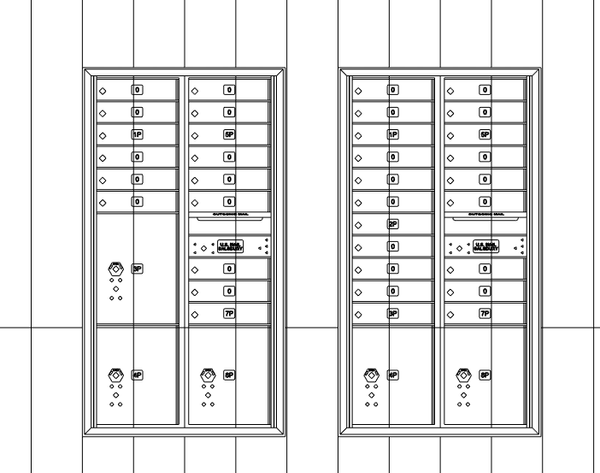

Follow up issue with another family. Tried the troubleshooting steps that worked here, got me part of the way there.




here's the family .. https://we.tl/t-x4LdN1eEIy

Revit is amazing
Nachricht 17 von 19
ToanDN
als Antwort auf: cbt990

You are looking at the back of the mailbox.  Press Space a couple of times to flip it.

Nachricht 18 von 19
cbt990
als Antwort auf: ToanDN

Ok, that was half of the issue:




Revit is amazing
Nachricht 19 von 19
ToanDN
als Antwort auf: cbt990


@cbt990 wrote:

Ok, that was half of the issue:

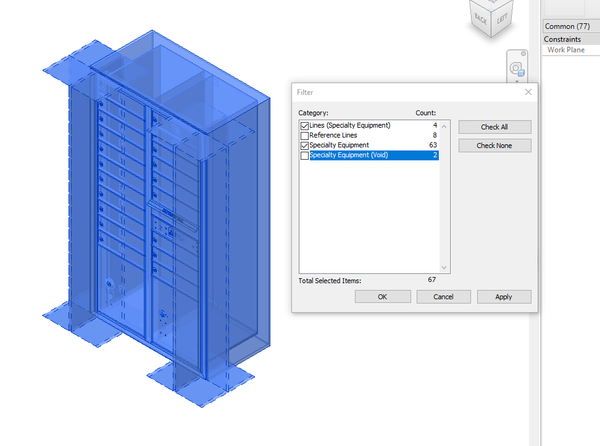

Edit nested families and check box.
