Crop/view for Sheet not working

[marco.defina]

Hello,

i have a problem, i don't understand why i have a crop view but the total dimension of view is bigger...

[ToanDN]

The inner boundary is View crop region, the outer boundary is Annotation crop region.

[marco.defina]

---

@ToanDN wrote:
The inner boundary is View crop region, the outer boundary is Annotation crop region.

---

I know, and i setted crop annotation...

[ToanDN]

---

@marco.defina wrote:

---

@ToanDN wrote:
The inner boundary is View crop region, the outer boundary is Annotation crop region.

---

I know, and i setted crop annotation...

---

So you already knew... then what is the question?

[marco.defina]

@ToanDN

Why the view is so big if i setted crop annotation?

[ToanDN]

Annotation crop is to show the annotation outside of the cropped model.  you can click on the View crop region and stretch them individually.

[marco.defina]

@ToanDN

In effect is so...But the result is different...

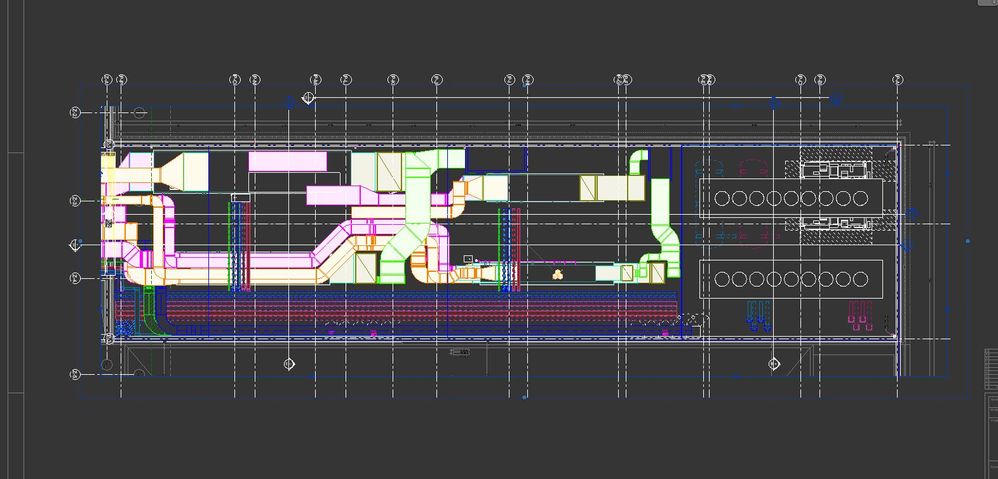

Crop annotation:

View in sheet (red view frame, green crop frame:

[kadmonkee]

use scope boxes to manage your views

[marco.defina]

I setter scope box and flagged all. I have all right setted to have a view cropped. I click on the view but tche vies is biggest than the scope box!

[kadmonkee]

the scope box should be smaller than the crop region
in the view turn off crop reion visible leave crop view checked

Scope Box is green Crop Region is Black

image 1 is crop region all boxes checked no Scope Box

image 2 is crop region visible all boxes checked with Scope Box (highlighted with adjustment grips)

image 3 is how the views are placed on a sheet

[marco.defina]

@kadmonkee

image 3 is not readable...

[kadmonkee]

it merely represents the differences between a view using crop regions and a view using Scope boxes

the top view is using a scope box the size is clearly visible

the bottom view is using Crop Region with the scope box visible in green

as a comparison you can see the scope box is smaller than the crop region. so it should fit on your sheet better.

[marco.defina]

---

@kadmonkee wrote:

it merely represents the differences between a view using crop regions and a view using Scope boxes

the top view is using a scope box the size is clearly visible

the bottom view is using Crop Region with the scope box visible in green

as a comparison you can see the scope box is smaller than the crop region. so it should fit on your sheet better.

---

---

Ok i understand, but my question is, why on my Revit does not work?

My view on sheet is bigger than the crop box!

[kadmonkee]

is it possible that there may be something floating in your view that is causing the crop region to be that large?

open the view, uncheck all boxes that relate to the crop region, zoom extends, does your view change?

turn on the crop region visible button adjust it manually

now turn on the Annotative crop region button and adjust that manually also

select the blue dot on the dashed line to adjust it separately from the model crop region

see image below

the dashed line is the Annotative crop region the solid line is the model crop region, they could be adjusted in your view to cause this

[marco.defina · Accepted solution]

Hello, now I write how the situation has evolved, a case has been opened by Autodesk in this section:
https://knowledge.autodesk.com/article/Viewport-boundary-appear-when-System-Disconnects-are-turned-o...

[Anonymous]

make the refrence plans shorter
