Column hatch disappears when joined to wall

6 REPLIES 6
SOLVED
Back to Revit Products Category
Back to Topic Listing
Reply
Message 1 of 7
PDSF
Collaborator
670 Views, 6 Replies
‎10-10-2023 12:58 PM

Column hatch disappears when joined to wall

PDSF
Collaborator
Collaborator
‎10-10-2023 12:58 PM

Hey all, I know there are probably hundreds of posts on this issue, but the behavior seems to have changed recently so I'm starting another one. It used to be that when you joined an architectural wall to a structural column, the column would keep its hatch. This is not working for us any more in Revit 2023. The column goes white when it is joined to a wall. Switching join order does nothing. Is anyone else seeing this?

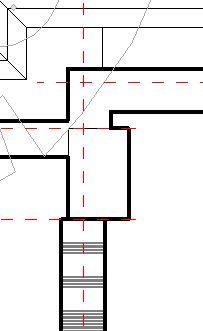

Joined: Capture2.JPG
