Blockwork pattern

13 ANTWORTEN 13
Antworten
Nachricht 1 von 14
Anonymous
1781 Aufrufe, 13 Antworten

Blockwork pattern

Hi all,

Can anyone tell me is there a way to show a blockwork pattern for a foundation wall with the blockwork laid on flat?

13 ANTWORTEN 13
Nachricht 2 von 14
barthbradley
als Antwort auf: Anonymous

Huh?  Can you post a picture of what your are describing?

Nachricht 3 von 14
Anonymous
als Antwort auf: barthbradley

I am now working with revit full time and starting to convert some old cad drawings. I will need create some basic renders, attached is a screen shot of the foundation wall and a image of the kind of pattern that I was trying to create.
Any help would be very much appreciated.
Nachricht 4 von 14
Avaris.
als Antwort auf: Anonymous

You forgot to include your screenshot. Do you mean such as this pattern?

Nachricht 5 von 14
Anonymous
als Antwort auf: Avaris.

Please find screenshot attached. Trying to adjust .pat file, just can’t get it to work...
Nachricht 6 von 14
barthbradley
als Antwort auf: Anonymous

Still no attachment, @Anonymous.  But, I'm wondering now if you are talking about the orientation of the Surface Pattern.  For instance, maybe you want a pattern rotated a different direction on the surface.  There are ways to do this.  One way would be to make it a Model Pattern (not Drafting Pattern) so that you could physically grab the pattern and rotate it.



Am I getting warm?

Nachricht 7 von 14
Anonymous
als Antwort auf: barthbradley

Sorry,

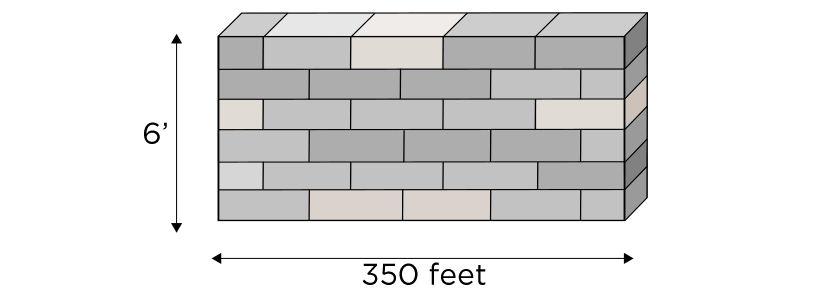

Don't know why attachments did not send, hope this works. I think you have put on the right track by using the model pattern. Ill keep trying .Block laid on Flat.pngOuter Blockwork.jpg

Nachricht 8 von 14
Anonymous
als Antwort auf: Avaris.

Many thanks for your reply, hope you see attachments now..

Nachricht 9 von 14
ToanDN
als Antwort auf: Anonymous

Some of the wall types and patterns maybe already included in the template.  below is an example of a standard CMU wall.  See screencast in a few minute on how to aligning the pattern.



Annotation 2019-01-10 143454.jpg

Screencast will be displayed here after you click Post.

549b2f43-7e87-497e-9823-38cb79278c6c



Nachricht 10 von 14
barthbradley
als Antwort auf: Anonymous

Looks like you are wrapping wall ends. How about not wrapping ends. Instead, paint wall ends with a material that uses a parallel lines spaced the distance of the brick height.  Make it Model Pattern so you can line it up with the front pattern.



Brick wall.png





Nachricht 11 von 14
Anonymous
als Antwort auf: barthbradley

Thanks for all the help problem solved with a modified .pat file
Nachricht 12 von 14
sam.plumbe4YLRA
als Antwort auf: Anonymous

I am strugling with the block laid flat. don't suppose you could share the .pat file you made? thanks

Nachricht 13 von 14
syman2000
als Antwort auf: sam.plumbe4YLRA

Here are some samples



http://www.cadhatch.com/autocad-brickwork-hatch-patter/4588167685

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 14 von 14
sam.plumbe4YLRA
als Antwort auf: syman2000

Many thanks the hatch generator they had on the website worked brilliantly.
