Align grid "handles" to grid lines

Good day.

I would like to show that the grid "handles" are aligned to grid lines. However, I can not seem to do it. How can I make it work?





I tried the following methods:
1. Created a grid head family with the supposed "handle". It works on the top grid head only, but when it comes to bottom/left/right grid heads, it becomes like this:


2. From the family with the "handle", I tried using shared parameters with visibilities that hides these handles through a checkbox. However, it did not work.




You may see the attached file below for the grid head family.



I am not quite sure on how to call the "handle", if there should be a term for it, let me know.

Cheers.

12 ANTWORTEN 12
Nachricht 2 von 13
Tom_Kunsman
als Antwort auf: dlsager

Not sure this will work. The column grid ballon family is somewhat restrictive in what you can do in it. And as you saw, even if you add a generic annotation or region, it will stay in the quadrant that you placed it in.

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 13
andr3sant0s
als Antwort auf: dlsager

You could create a visibility parameter for up/down/left/right, but if you have a slanted grid line it won't be useful...

Please use Accept as Solution and like/Give Kudos as appropriate to further enhance these forums.
Nachricht 4 von 13
handjonathan
als Antwort auf: dlsager

Hi @dlsager

Thanks a lot for posting your question to the forums!   Has the solution suggested by @Tom_Kunsman @andr3sant0s  helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)

Nachricht 5 von 13
barthbradley
als Antwort auf: dlsager

I don't have a solution, but I am curious why you want this.  What function does it serve - assuming form follows function in this case.

Nachricht 6 von 13
dlsager
als Antwort auf: barthbradley

It is a part of our company's drafting standards.
Nachricht 7 von 13
dlsager
als Antwort auf: andr3sant0s

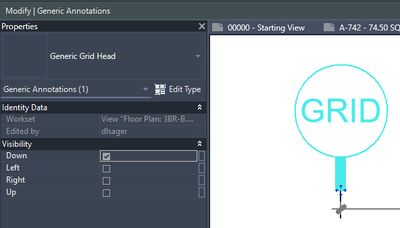

I did create a visibility parameter on these directions. However, it did not work. My custom-made family with these parameters is attached within the original post. Don't worry - I don't mind about the slanted grids, I just need the straight ones.

Nachricht 8 von 13
dlsager
als Antwort auf: handjonathan

Hello, good day.



I am still looking for the solution - I have thought of using generic annotations for grid heads instead, however, maybe we could still find a much efficient solution.




Nachricht 9 von 13
dlsager
als Antwort auf: Tom_Kunsman

Thank you very much for your insights.

Nachricht 10 von 13
ToanDN
als Antwort auf: dlsager

What is the "handle" for?

Nachricht 11 von 13
dlsager
als Antwort auf: ToanDN

It is part of our company's drafting standards.

Nachricht 12 von 13
SteveKStafford
als Antwort auf: dlsager

Unfortunately in this case the answer is a no, Revit won't do that. It only specifies one family for both ends of a grid and it does not rotate the opposite end annotation family. They could accommodate this graphical approach if they offered a start and end grid bubble annotation and if they provided a toggle to invert the symbol at an end. Something for Revit Ideas.


Steve Stafford
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
EESignature

Nachricht 13 von 13
ToanDN
als Antwort auf: dlsager

I get it is from the firm graphic standards.  But what does it do? Does it indicate some properties of a grid?
