Adjusting a roller shade family

7 ANTWORTEN 7
GELÖST
Antworten
Nachricht 1 von 8
ray
Contributor
571 Aufrufe, 7 Antworten

Adjusting a roller shade family

Hi

I'm having a hard time figuring out how to adjust this roller shade family.  When placed it attaches incorrectly to the ceiling.  The same issue is present with ceilings or the underside of a floor.



What part would I edit so that it attaches within the ceiling instead of on the surface of it?






Family:




Beschriftungen (2)
7 ANTWORTEN 7
Nachricht 2 von 8
barthbradley
als Antwort auf: ray

Seems to host to Ceiling or Floor just fine.  Top and bottom face.






Are you selecting "Place on Face" or "Place on Workplane"?




Nachricht 3 von 8
barthbradley
als Antwort auf: ray

You could even place it on a Named Ref. Plane. That's a Work Plane.




Nachricht 4 von 8
ToanDN
als Antwort auf: ray

I would host it under a soffit above the ceiling, like how it should be done in field.










Or place it on a ref plane above the ceiling if you don't feel like modeling the soffit.










Nachricht 5 von 8
barthbradley
als Antwort auf: ToanDN

Flip Work Plane doesn't work on a compound ceiling or floor with this family.

Nachricht 6 von 8
ray
Contributor
als Antwort auf: ray

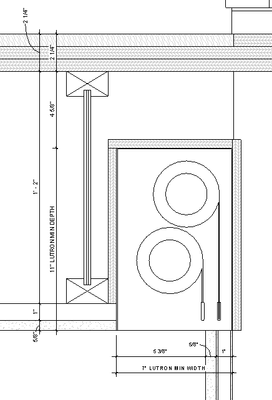

Thanks for the replies!  I'm not really looking to flip the component, it needs to be set high up into the ceiling, like this:




Is there an edit I can do to the family itself? Or do I need to create little soffits as suggested, or perhaps look into other solutions like making a whole new family?



Nachricht 7 von 8
mhiserZFHXS
als Antwort auf: ray

You could edit the family, but making the soffits would probably be easier if this is a one time thing.

Nachricht 8 von 8
ray
Contributor
als Antwort auf: mhiserZFHXS

I ended up making a nested face based family with it's own ceiling soffit of sorts.  The "upside down" thing still throws me off, but it works.



Family







Placed in model:
