Possibility to add plain text in a dimension in a sketch

Possibility to add plain text in a dimension in a sketch

It would be nice if you could add plain text in a dimension. For example between (asda sada) after the value. This text is than visible in the sketch. NOT as a parameter but just add plain text to the value.

This way you can clarify why a dimension has a certain value which can give yourself and other who open the sketch the information why some values are chosen.

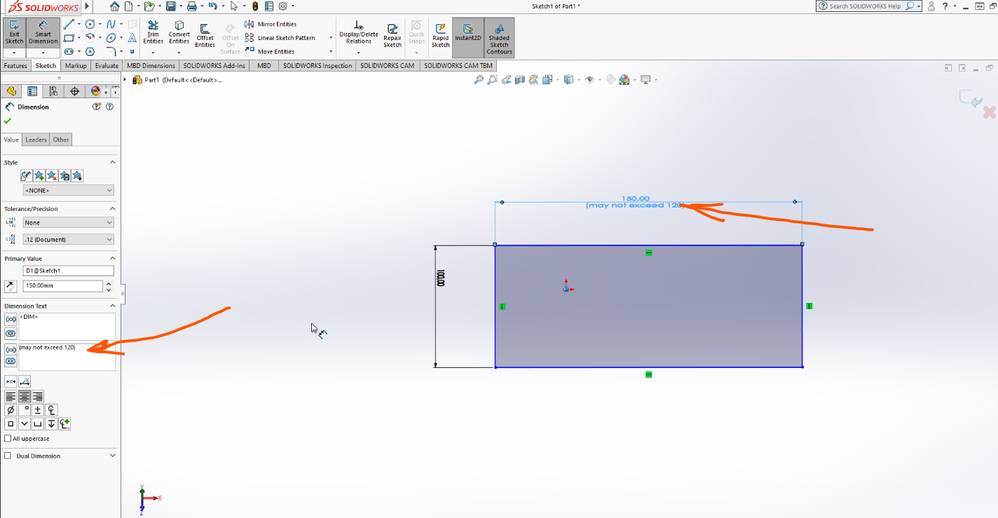

Pleas also have a look at SolidWorks on this matter, they have this possibility.





2 Comments
jeanB99VC
Enthusiast

Solidworks Text in Sketch Annotation.png

MKE_Howard
Collaborator

Hi @jeanB99VC, I know it's not the best and its just a workaround but if you go in the Annotate section, you can add text with your dimensions :
