Special symbols in Part List

[0x3FA5]

Ok, I give up.

Trying to enter a DIAMETER symbol into the part list. Such a simple thing to do, such an unexpected difficulty..

The character map does not work, since for some reason the diameter symbol is interpreted as "small Latin n" and when I paste it into the part list it appears as "n".

Any thoughts?

I am clearly doing something wrong, it just cannot be that complicated.

Quick update:

There is another combination I found, which produces the right symbol but wrong size.. Obviously, there is no way to control the size of a particular character in the part list?

This is the correct symbol and the size, as appears on the drawing:

But in general,

What if I need to enter another symbol, such as angle, plus/minus, etc? How do I make sure that the symbol will appear exactly the same way on every computer this drawing is viewed on? The character map wouldn't work in this case, please correct me if I am wrong.

Thank you.

[Cadmanto]

See below.

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2020

[0x3FA5]

Th

---

@Cadmanto wrote:

See below.

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2020

---

Thank you, but this is an "empty set", not a diameter. The reason I note the difference is because there is a diameter symbol on the drawing itself, as a part of the dimension, and this is a visually different symbol.

[Cadmanto]

Then fond the same font in the character map then look for the diameter symbol.  They will be the same.

You did not state this in your OP that they had to be identical.

Windows 10 x64 -16GB Ram
Intel i7-6700 @ 3.41ghz
nVidia GTS 250 - 1 GB
Inventor Pro 2020

[-niels-]

Maybe the one in the "AIGDT" font?

[0x3FA5]

---

@-niels- wrote:

Maybe the one in the "AIGDT" font?

---

Nope, still "n"..

[-niels-]

Hmm, then i don't know...
Most of the times that this issue came up in the past was because the "AIGDT" font wasn't installed properly, so if you have that available then i can't say why you're getting an "n" instead.
Sorry...

[SBix26]

@-niels-  is correct: the diameter symbol used in hole notes is in the AIGDT font, and it uses the ASCII code that is used for 'n' in most other fonts.  If you want that symbol, you'll have to use AIGDT as the font; if you want your regular text font, you'll have to put up with the difference in appearance.

For what it's worth, the dimension edit box shows both the current font Alt-0216 symbol and the AIGDT diameter symbol (not sure what version of Inventor this came from); the gray symbols at the top are the current font, the ones below are AIGDT:

---

Sam B
Inventor Pro 2020.0.1 | Windows 7 SP1
LinkedIn

[0x3FA5]

---

@SBix26 wrote:

@-niels-  is correct: the diameter symbol used in hole notes is in the AIGDT font, and it uses the ASCII code that is used for 'n' in most other fonts.  If you want that symbol, you'll have to use AIGDT as the font; if you want your regular text font, you'll have to put up with the difference in appearance.

For what it's worth, the dimension edit box shows both the current font Alt-0216 symbol and the AIGDT diameter symbol (not sure what version of Inventor this came from); the gray symbols at the top are the current font, the ones below are AIGDT:

---

Sam B
Inventor Pro 2020.0.1 | Windows 7 SP1
LinkedIn

---

How did you get to this box? I get this Edit Dimension box only for well.. dimensions. I don't see this in the Parts List edit box:

Also how do you change the font for the Parts List?

Thank you.

[SBix26]

Part List font is set in the Part List style, which incorporates three text styles for Title, Headings, and Data.  The font is actually defined in the selected text style.  But the whole table uses the same font, so you can't select a different one for a specific character.  I think in your place I'd look at replacing the AIGDT diameter symbol with the standard font one in your dimension styles.

---

Sam B
Inventor Pro 2020.0.1 | Windows 7 SP1
LinkedIn

[joseph.hoermann]

@0x3FA5 Thank you for your query. @SBix26  is correct so if you feel that their reply solved your initial question please mark it as a solution. Also this article details the workflow they expressed. Note the attachment in the article.

I also concur with @SBix26  concerning your second question:

---

@SBix26 wrote:

Part List font is set in the Part List style, which incorporates three text styles for Title, Headings, and Data.  The font is actually defined in the selected text style.  But the whole table uses the same font, so you can't select a different one for a specific character.  I think in your place I'd look at replacing the AIGDT diameter symbol with the standard font one in your dimension styles.

---

Sam B
Inventor Pro 2020.0.1 | Windows 7 SP1
LinkedIn

---

Please let me know if you have any further questions, and many thanks to @SBix26  for the swift responses. Have a wonderful day.

[0x3FA5]

---

  I think in your place I'd look at replacing the AIGDT diameter symbol with the standard font one in your dimension styles.

---

---

Thank you for your answer, but I truly have no idea what are you talking about.

In other CADs I am familiar with it just works.

Thank you for your time and answer.

[0x3FA5]

---

@joseph.hoermann wrote:

@0x3FA5 Thank you for your query. @SBix26  is correct so if you feel that their reply solved your initial question please mark it as a solution. Also this article details the workflow they expressed. Note the attachment in the article.

I also concur with @SBix26  concerning your second question:

---

@SBix26 wrote:

Part List font is set in the Part List style, which incorporates three text styles for Title, Headings, and Data.  The font is actually defined in the selected text style.  But the whole table uses the same font, so you can't select a different one for a specific character.  I think in your place I'd look at replacing the AIGDT diameter symbol with the standard font one in your dimension styles.

---

Sam B
Inventor Pro 2020.0.1 | Windows 7 SP1
LinkedIn

---

Please let me know if you have any further questions, and many thanks to @SBix26  for the swift responses. Have a wonderful day.

---

Re-installed the AIGDT font, still get an "n" through the Character Map.

I have further question, please see here:

https://forums.autodesk.com/t5/inventor-forum/baseline-dimension-to-virtual-sharp-intersection-point...

Thank you.

[joseph.hoermann]

@0x3FA5 I will escalate your second question to support as well and do my best to help you with it. As for your first question, since you are coming from a third party software you might want to familiarize yourself with how styles and standards work within Inventor as they aren't necessarily the same. I found the Neil Cross tutorial video to be very helpful.

That being said, you will need to create a custom style that reflects the font that you are attempting to use.

In the image above you can see how to access these standards and where the defaults are set. If you click the pencil icon next to Data, you can edit what will be filled within the Parts List. Just make sure they are set as object defaults and you might want to make a template.

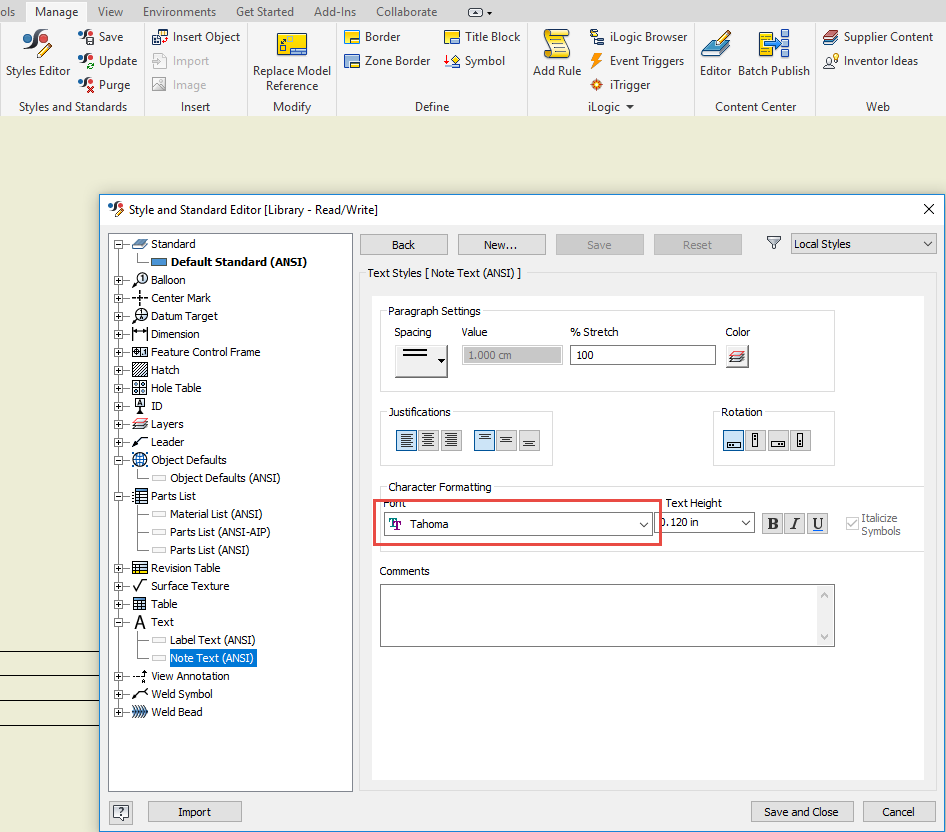

Above you can see the text formatting, and this is where you will change the font like @SBix26 was explaining.

Please let me know if this answers your question. Thanks!
