"Create 3d Model" from Nest does not keep parts within stock
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report
Hello, we are attempting to create nesting geometry with engraved "extruded" text so that the parts can be etched with the part number on CNC. I believe the only way we can get the part number exported to nesting geometry is with a part feature, so we are using "Create 3D Model" in a nested sheet which gives me all of the features but we now have an assembly file where the parts are not constrained or aligned to the stock? Can someone please confirm if this is a glitch or if i am doing something wrong?
Here are some screenshots for context:
ORIGINAL ASSEMBLY SOURCE WITH EXTRUDED TEXT FOR THE ENGRAVING
Original Assembly Source

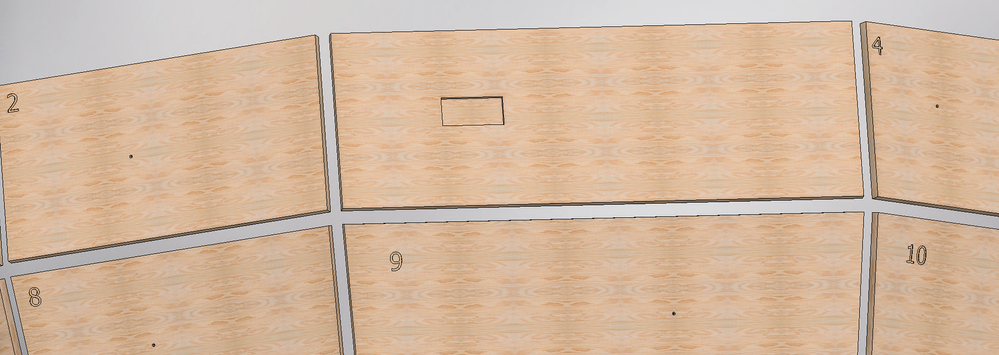

NESTING STUDYNesting Study
3D MODEL EXPORT:
3d Model Export of first sheet
