Modifying an IGS and IGES file in inventor

Anonymous
Not applicable

Hello everyone,



I have got two files with IGS & IGES formats,



The file includes the centreline of a tube which has been extracted from an an X-Ray file of the actual tube.



The problem is that, since the tube centreline is not in a single plane, it is divided into lots of small pieces of lines. My plan is to use a smooth line and sweep a circle along it to replicate the tube.



The problem is that I cannot find a way to smoothen the line in inventor. I even tried to project the centreline on a plane but it did really work!!



So, could someone please kindly help me on this?



Best,

Ali

0 Likes
Accepted solutions (1)
1,384 Views
8 Replies
Replies (8)
Message 2 of 9

Mark.Lancaster
Consultant
Consultant

@Anonymous



Welcome to the community...



For starters.. Always indicated the version of Inventor you're using.  There are many experts here and they all use different version of Inventor.



Secondly.. Although you have description..  Words mean different things to everybody.  Share your information so we know what you're even talking about.

Mark Lancaster


  &  Autodesk Services MarketPlace Provider


Autodesk Inventor Certified Professional & not an Autodesk Employee


Likes is much appreciated if the information I have shared is helpful to you and/or others


Did this resolve your issue? Please accept it "As a Solution" so others may benefit from it.

0 Likes
Message 3 of 9

Anonymous
Not applicable

Hello,



the version I am using is Inventor Pro 2016,



I have also attached the inventor file including the imported IGS file for your information, too





Best,

Ali

0 Likes
Message 4 of 9

Anonymous
Not applicable

Hi Alimosayyebi



I made a 3D sketch and cherry picked a few points off the imported 3D sketch using a spline.



I don't know how accurate / smooth the loft need be (I tryed sweep but no joy) so re-make

the centre line 3D sketch if not smooth enough.








Message 5 of 9

JDMather
Consultant
Consultant

What is your purpose, your design intent, for this "tube"?



If you are attempting to reduce the design to a simplified form - you should be able to get any desired path for a Sweep by following the general instructions in the attached document.


-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


Message 6 of 9

blandb
Mentor
Mentor

Not sure if you found a solution, but I have attached a swept tube along your supplied path. Please see attached.



I do agree with @JDMather, what is the purpose and simplification would be a good idea.

Autodesk Certified Professional
0 Likes
Message 7 of 9

Anonymous
Not applicable

Hello @Anonymous



thanks for the file,

this seems to be something similar to what I am looking for,

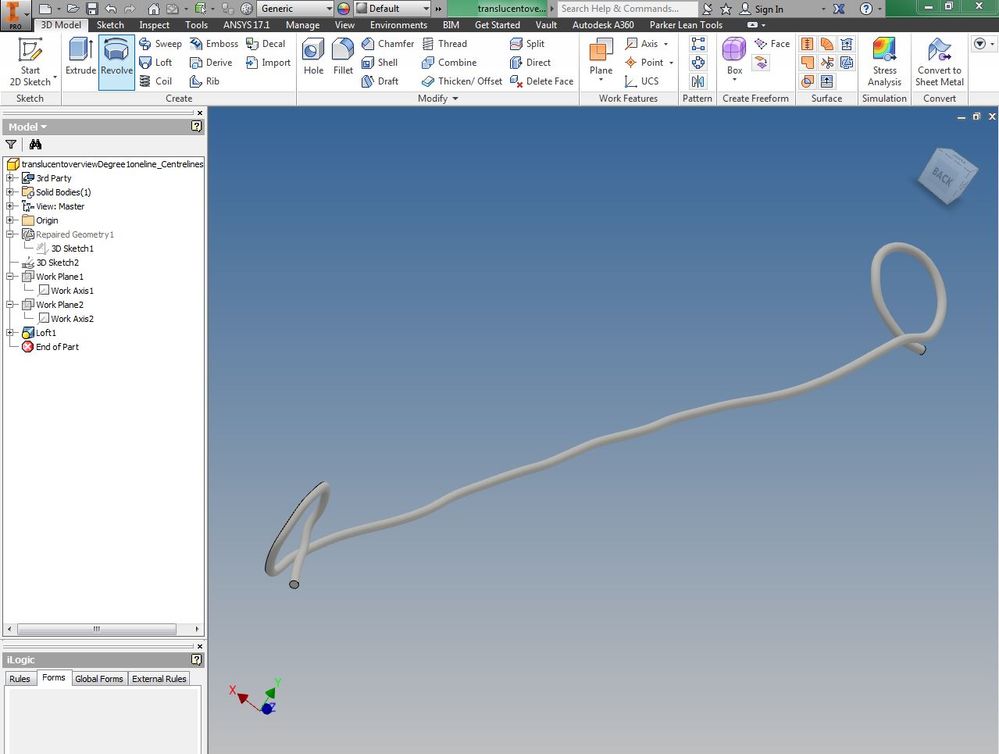

Still through, I would need to sweep it rather than using loft! because the tube is supposed to be a pipe rather than a solid tube, similar to the attached photo. Also, I will be putting later holes on the wall, shown in the image, so I believe would be a better option!



Thanks very much @JDMather for the link, I am now looking into it to find the closest route to the actual centre line! The centre line is extracted from the x-ray of a pipe so it's better to use, ideally the closest path without nodes and breaks.



Thanks very much @blandb for the file, the problem with this is the breakages in the nodes! so I believe @Anonymous file is a better to go for now. However, still the problem of creating a pipe exists.





Best,

Ali



0 Likes
Message 8 of 9

JDMather
Consultant
Consultant
Accepted solution

@Anonymous wrote:



...Still through, I would need to sweep it rather than using loft! because the tube is supposed to be a pipe rather than a solid




Shell




-----------------------------------------------------------------------------------------
Autodesk Inventor 2019 Certified Professional
Autodesk AutoCAD 2013 Certified Professional
Certified SolidWorks Professional


0 Likes
Message 9 of 9

Sofia.Xanthopoulou
Mentor
Mentor

Hi @Anonymous,



a lot of experts have worked for you here Smiley Wink and it seems that you got what your needed. Last but not least the final hint from JDMather to use the shell command to get a pipe instead of a solid tube.

Which way did you chose? Please share your experience with all readers by either marking at least one solution or posting the solution.
