Hi,

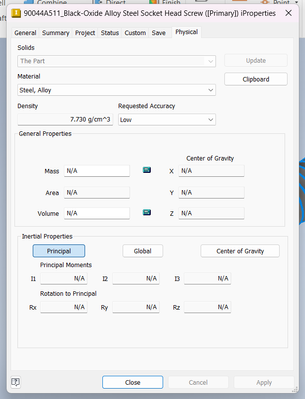

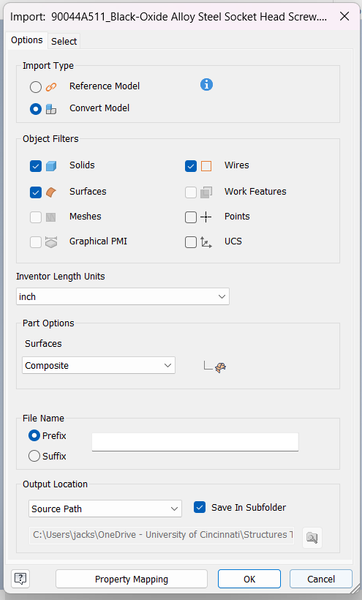

I am able to download and import a step file of a screw from McMaster-Carr (link here) into Inventor. However, when I go to the iProperties, all of the values say "N/A" under the Physical tab. Any suggestions as to how I can get these values to populate? Specifically, I need the Mass and Volume values. I have downloaded step files from the site before and have had no issues, just this one file. So far I have tried updating iProperties, using the Repair Bodies feature, importing it as a SolidWorks file & re-importing it, and trying to Derive it as a part into a new part file but nothing works. Attached are the step file, iProperties dialogue box, and my selected import options.
Thank you!!
Solved! Go to Solution.
Solved by YannickEnrico. Go to Solution.
Some of the geometry on the thread is sick
I repaired it by capturing the profile on a sketch -> 3D sketch with a spiral -> Delete Face (heal remaining geometry) -> Sweep
I didn't clean it entirely, just did it to confirm my suspicion about the geometry
That fixed it, I guess I need to look more at working with surface repairs. Thank you for your help!
