Edit Aligned section view cutting plane

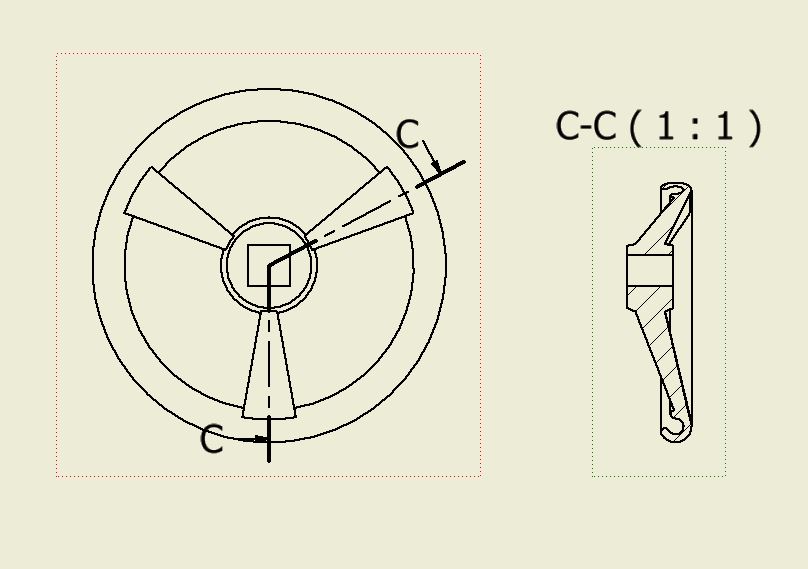

Something like this?
Inventor 2020, In-Cad, Simulation Mechanical
Just insert the picture rather than attaching it as a file
Did you find this reply helpful ? If so please use the Accept as Solution or Kudos button below.
Delta Tau Chi ΔΤΧ
Open the sketch containing the section line, use the project geometry in the sketch edit tools to project the center point and use that point for your cut line segments.
Start with the vertical line from the bottom up to the projected center point of the outside of the rim, then continue the line out at your angle. You will most likely have to add an angular dimension of 120 deg from the lower vertical to angled line for the proper section.
Inventor 2020, In-Cad, Simulation Mechanical
Just insert the picture rather than attaching it as a file
Did you find this reply helpful ? If so please use the Accept as Solution or Kudos button below.
Delta Tau Chi ΔΤΧ
The center point of the wheel is projected with the sketch, this is why you see Yellow over the black lines of the wheel circles. I have deleted a couple of the projected lines just to clean up the sketch and verify they are projecting their center point.
I then did the section lines nowhere near the center point, then dragged the end point to the center point. Then moving the lower line until it became constrained Vertically. I then added the 120 deg dim to position the upper angled line to be centered on the wheel spoke.
You may want to use the "Projected" Option when you do this to get the view with the upper portion at the angle.
Center Point http://autode.sk/1WeSLnp
Inventor 2020, In-Cad, Simulation Mechanical
Just insert the picture rather than attaching it as a file
Did you find this reply helpful ? If so please use the Accept as Solution or Kudos button below.
Delta Tau Chi ΔΤΧ
Dear Blair

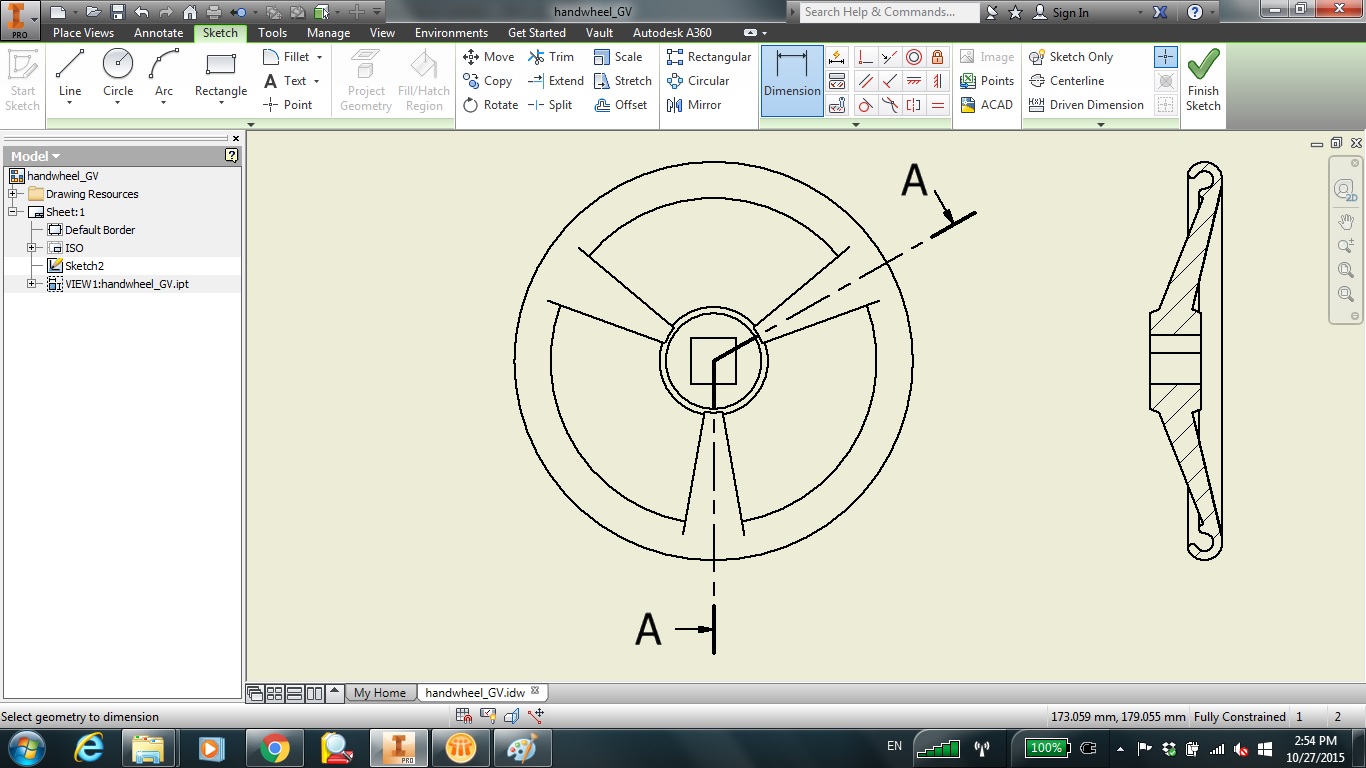

I cannot project anything when I edit the cutting plane (Project Geometry is grey out). Also I cannot pick any line when I tried to dimension during edit the cutting plane. Please see the screen shot. I remembered in older vision, I can edit the cutting line by project geometry and dimension the angle. But there is no such ability in 2016 version.
