Drawings: Moving text with Surface finish symbol or eventually other symbols

GabiWearing
Advocate
Advocate

Good morning fellow Inventor users,

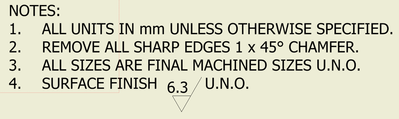

I wonder if there is a way I can join my surface finish symbol to the text, so when I move the text the symbol will move with it. Atm. I have to move them separate.

Maybe a silly question but it is really annoying.



Thanks all and have a great day!




0 Likes
Accepted solutions (1)
2,229 Views
4 Replies
Replies (4)
Message 2 of 5

gcoombridge
Advisor
Advisor

Create a sketch symbol for the text and add a surface texture symbol to that. You will have to draw it manually but there isn't much to it.

Use iLogic Copy? Please consider voting for this long overdue idea (not mine):https://forums.autodesk.com/t5/inventor-ideas/string-replace-for-ilogic-design-copy/idi-p/3821399
Message 3 of 5

GabiWearing
Advocate
Advocate
If I do what you suggest and I understand you right, changing the text will be more complicated because I have to change the symbol. Correct?
I was hoping for something like Solidworks has as in while editing the text selecting the symbol so it is included in the text.
0 Likes
Message 4 of 5

gcoombridge
Advisor
Advisor
Accepted solution

I don't think so - see attached symbol panel in general text (it's also not a ascii character):image.png

And yes you will have to edit the definition then edit the text, then exit the definition so a few more mouse clicks. Alternatively you could just write surface finish:









Use iLogic Copy? Please consider voting for this long overdue idea (not mine):https://forums.autodesk.com/t5/inventor-ideas/string-replace-for-ilogic-design-copy/idi-p/3821399
Message 5 of 5

GabiWearing
Advocate
Advocate
Yes you are right, I could just write surface finish... didn't think of that but I will have a go at what you suggested.
Thank you!
