Another thing that isn't intuitive or easy, what a surprise here!
I have an assembly file (.iam) that is within its drawing file (.idw) and I need to show the part in two configurations, on two separate sheets. However, every time I try to show the part in one configuration, the drawing views update to that mate configuration on the other sheet as well.
What I've Done:
1. Tried to make new views for both View and Level of Detail here:

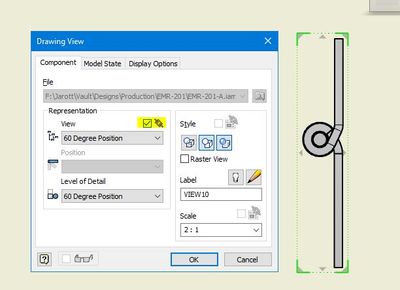

2. While messing with the Representations, I've also tried messing with the Associative Option while in the .idw file when editing the drawing views. See what I mean here:
I was surprised (not) to find, that didn't work either! On top of that none of these options actually change anything like most common users think it would. These options, from what I can gather from other community posts, are only there to allow certain parts of the Representaions that a user creates in an assembly to be able to show in a drawing file when the user selects that particular View Representation is activated for example. The Associative Option or the Representation Options DO NOT care about mates for example. In other words, activating the 60 Degree Position Representation will not activate the 60 degree mate, even if that mate was made active in the representation, and then later suppressed in the Master View.
So, is there a normal, feasible way to accomplish this need, or, do I need to add another duplicate part (lower part is what swings out to the left and up) in to my assembly file, constrain that one how I want it and add those parts to the 60 Degree Position Representation and activate that view once it's set up correctly in the .idw file?
Solved! Go to Solution.
