I'm just trying to scale a group of lines but they distort , when I try to scale them..
basic lines is the contents of a basic sketch

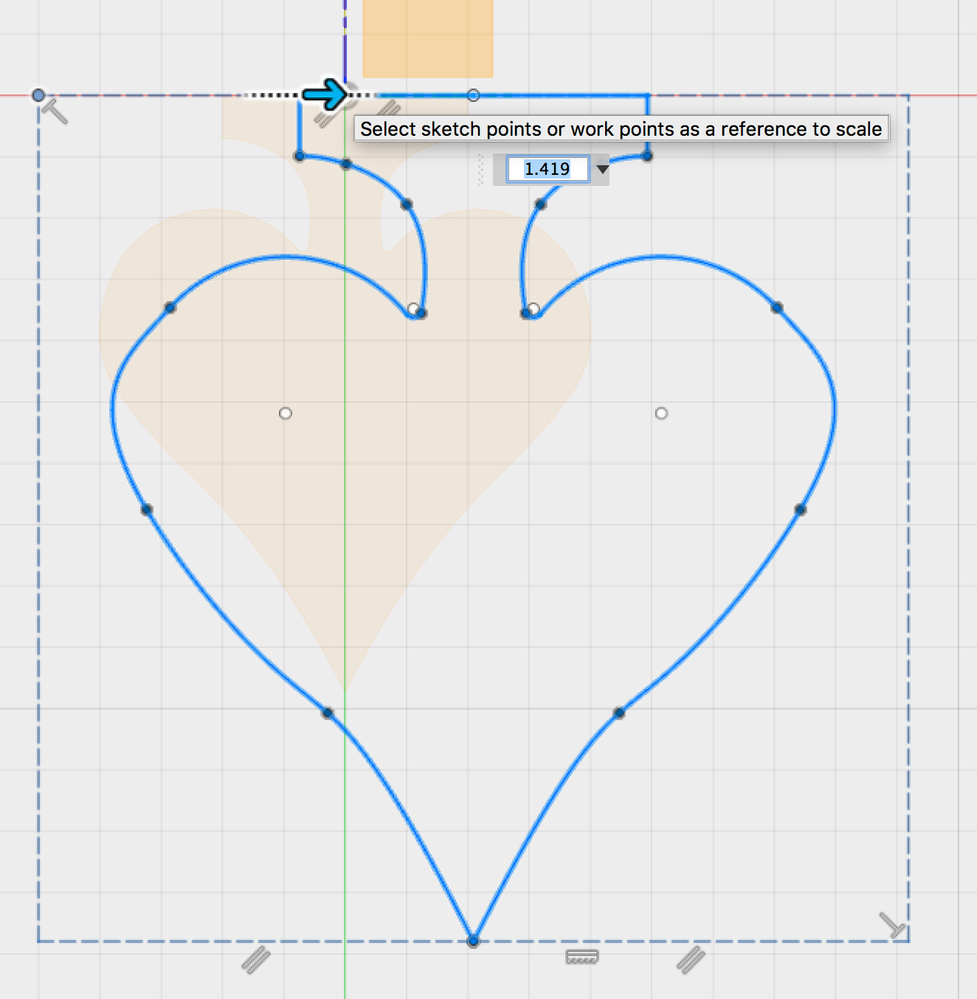

This is what happens when I try tip scale it. I actually wanted to make it 30% scale, but it distorts if I try to make it smaller of large.
what am I doing wrong?
Cheers, Stephen
Solved! Go to Solution.
Solved by StephenCim-001. Go to Solution.
Solved by HughesTooling. Go to Solution.
Hi @StephenCim-001,
Thank you for posting! Could you share a public link to the design with me? I'd like to take a closer look at it.
If you edit the spline using the handles it will no longer scale correctly. Easy test, just sketch a spline picking points then scale and it should work fine, now edit a couple or the handles and try scaling and it will go haywire.
Mark
Edit. Only workaround is to extrude then scale the solid.
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Extrude then scale the body will not work for me has, I project these curves on to a curves surface, then split and push to form an inlay,
Extrude then cut would need extra steps to produce the same end result has a project, split,push.. 🙂
I managed a work around for my current project , I'll try the extrude, reshape end, more extrude with cut next time 🙂
Cheers, Stephen
Actually found another solution, convert the current curves to construction curves then lay a new spline over the to and don't touch the spline adjusters and delete the old curves 🙂
I'm a novice at best so I could be wrong, but I'm pretty sure you have one or more constraints on your sketch - so Fusion is trying to scale the some of your sketch without violating the constraint(s) of some parts. If you had a triangle with only one constraint - the base is 50mm say - and you try to scale it, Fusion will let you lengthen or shorten the sides, but the base can't exceed 50mm and your triangle will distort.
