Help, I can't select a sketch to extrude

Anonymous
Not applicable
‎03-05-2021 04:53 AM

The title says the problem, I am referring to sketch 10 of motherboard tray top

computer try again v11.f3d
0 Likes
Like
Report
Accepted solutions (1)
Solution 1
5,720 Views
42 Replies
Replies (42)
Message 21 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-06-2021 07:40 AM

Did you look at the file that I attached previously?

Do not use Bend unless you have extensive experience with sheet metal bend allowance hand calculations.



Model in finished form to desired finished dimensions - Fusion will figure out the Flat Pattern for you.

I'll Attach the file again.

Edit to your true Design Intent dimensions and then ReAttach here.

Whisper - Outer Shell.f3d
0 Likes
Like
Report
Message 22 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-06-2021 07:53 AM

Yes I saw your version, but I'd like to know how/why my version didn't work. For instance, my version of the shell, how should of each of those lines been constrained?

0 Likes
Like
Report
Message 23 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-06-2021 08:16 AM
@Anonymous wrote:

... how should of each of those lines been constrained?

Anytime you find yourself repeating dimensions - you are almost certainly doing too much work...


...back in a minute...



...I'm back.  Keep Sketches Simple.




Keep Sketches Simple.f3d
0 Likes
Like
Report
Message 24 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-06-2021 08:29 AM

I am completely new to cad, I am not looking to be as efficient as I can be. I have this thing in my head and I have the need to get it out and modeled. If its shoddy, its shoddy. But if the commands that I have figured out how to use, just inexplicably don't work anymore, I have no idea what to do. You told me extrusion isn't working because my sketches were not constrained. So what is a simple way to constrain them? I don't mind being inefficient, I can learn to do better as I go. I just need to know how to get a line or rectangle down and make it work after entering in the dimensions that I want.



I hope I am not coming off as ungrateful.



Edit, this was written before the second part of the last response.

So could you please explain that?

0 Likes
Like
Report
Message 25 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-06-2021 08:39 AM
@Anonymous wrote:

You told me extrusion isn't working because my sketches were not constrained.

That is not what I wrote.

0 Likes
Like
Report
Message 26 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-06-2021 08:50 AM

Sorry if I misunderstood. Seems like I am not understanding quite a bit when it comes to this. I'll try to work again on it tomorrow and be back with some more questions.

0 Likes
Like
Report
Message 27 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-06-2021 08:38 PM

Okay, I'm back working at it today. I have the outer shell you made, the bottom, top, and inner wall made. Now I want to make fan mounting holes in the motherboard bottom component. My previous attempt left nothing but an unconstrained mess. See motherboard bottom sketch3 of computer try again v12.



I started off by marking where the 540mm fan area would go with the line tool. then I made the area and each circular cut our and marked the screw hole positions. Finally I extruded to the depth I wanted. What method would you recommend to do that properly/correctly/efficiently?





computer try again v12.f3d
Whisper - Outer Shell v3.f3d
0 Likes
Like
Report
Message 28 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-07-2021 04:56 AM

I Tired to continue, but I still got blue lines and white dots. Please advise.

motherboard bottom sketch 3

Whisper - Outer Shell v3.f3d
0 Likes
Like
Report
Message 29 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-07-2021 05:02 AM

Use the Origin Planes (rather than body faces) whenever possible and practical to create sketches.

Do not repeat sketch geometry (you will need only ONE fan sketch).

Place sketch points at the four corners of the rectangle (these will be used for Hole features later).

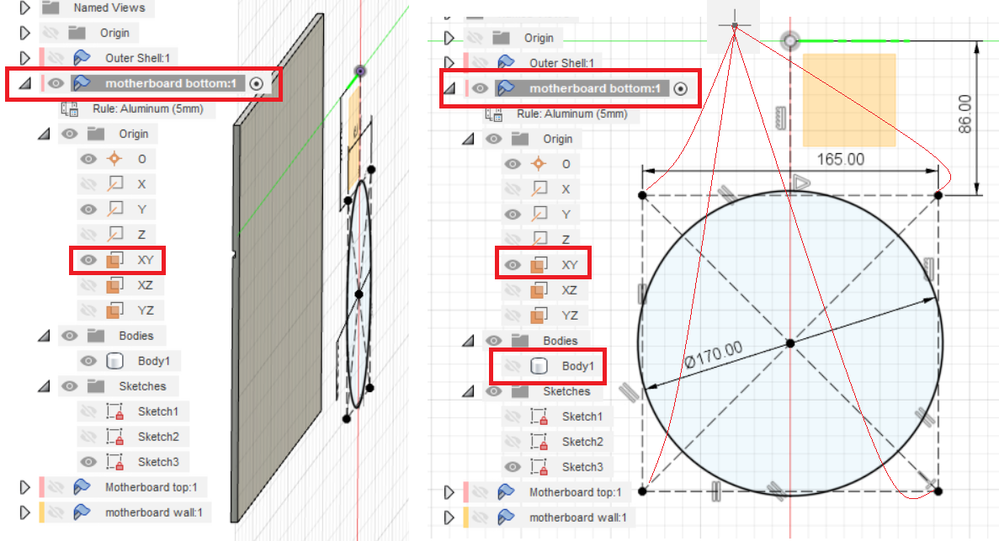

BORN TechniqueBORN Technique



...and make use of obvious symmetry.




0 Likes
Like
Report
Message 30 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-07-2021 05:18 AM

I do not know how to place the rectangle with out using lines to see my positing. How do I place a rectangle or circle in relation to the origin?

0 Likes
Like
Report
Message 31 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-07-2021 05:30 AM
How do I place a rectangle or circle in relation to the origin?

I use Construction Lines - not technically needed, but I like a visual reference.

Whisper - Construction Lines.f3d
0 Likes
Like
Report
Message 32 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-07-2021 05:36 AM

That is what I always do. But then I get blue lines because they are not constrained. How do I create the rectangle 86mm away from the origin?

0 Likes
Like
Report
Message 33 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-07-2021 05:40 AM
@Anonymous wrote:

How do I create the rectangle 86mm away from the origin?

Dimension it 86 from the Origin AFTER creation.

Imagine you are sitting in a car.

There is a driver that determines where the car goes (your design) and the passenger(s) (sketch(es)) that are merely along for the ride.

Parametric dimensions in Fusion are DRIVING dimensions.  Add the driver and the sketch geometry is along for the ride-it goes where the driver makes it go.

0 Likes
Like
Report
Message 34 of 43

Anonymous
Not applicable
‎03-07-2021 05:42 AM

I cannot find that dimension option

0 Likes
Like
Report
Message 35 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-07-2021 05:44 AM


...or hit D on the keyboard.

0 Likes
Like
Report
Message 36 of 43

Anonymous
Not applicable
‎03-07-2021 05:48 AM

I have tried the d command many times before, as that's what people in the tutorials use, but it never brings up any area to move the sketch

281 KB
0 Likes
Like
Report
Message 37 of 43

Anonymous
Not applicable
‎03-07-2021 05:59 AM

Could someone please link a video to explicitly show me this function? I feel like a complete imbecile for not being able to do this simple little thing.

@TheCADWhisperer

0 Likes
Like
Report
Message 38 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-07-2021 06:20 AM

From your posted image - I made the prompt for next step larger...


0 Likes
Like
Report
Message 39 of 43

Anonymous
Not applicable
in reply to TheCADWhisperer
‎03-07-2021 06:30 AM

I tried selecting the center point, the sides, the circle, and a drag section of everything. Nothing worked. I can't be this inept.

0 Likes
Like
Report
Message 40 of 43

TheCADWhisperer
Consultant
Consultant
in reply to Anonymous
‎03-07-2021 06:45 AM
Accepted solution

https://autode.sk/3qqezgo



See Screencast link above^^^
