Reduced Feed Radius

richardsalzman
Collaborator
Collaborator

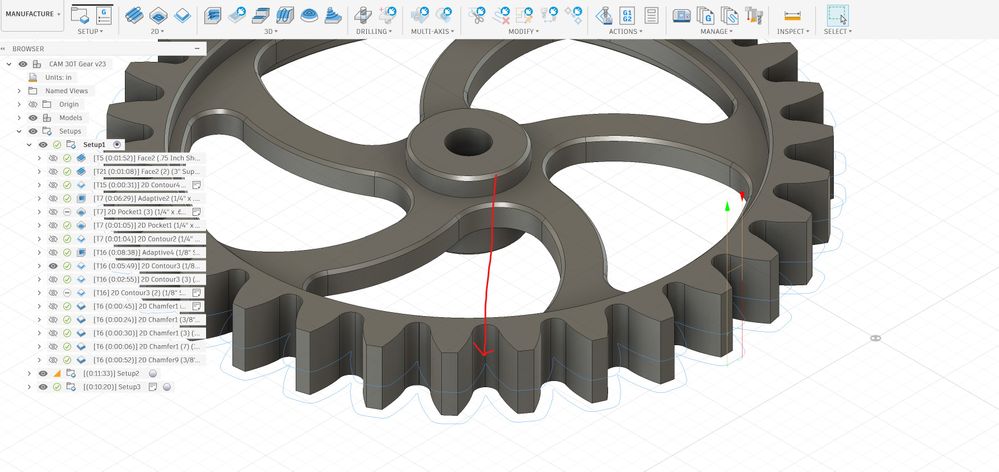

Quick question on a problem I was working on from an older post.  When you turn on feed optimization, I thought fusion shows the part of the tool path that is slowed down by displaying the slowed down piece in yellow.  Does this mean I have feed optimization setup incorrectly as the tight radius below is not displayed in yellow.



Reduced Feed Radius.jpg






Thanks... Richard

0 Likes
Accepted solutions (1)
506 Views
4 Replies
Replies (4)
Message 2 of 5

Laurens-3DTechDraw
Mentor
Mentor

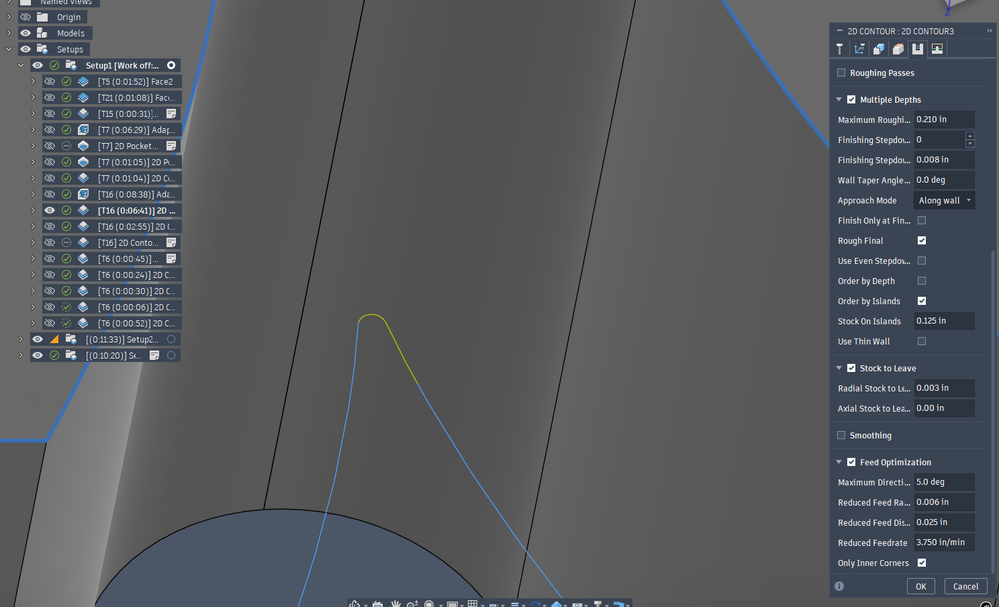

If you change the Maximum Direction Change value you can get what I think you want:

Laurens Wijnschenk
3DTechDraw

AutoDesk CAM user & Post editor.
Found out the hard way is the best way to win.


Message 3 of 5

richardsalzman
Collaborator
Collaborator
Accepted solution

Thanks so much Laurens,



I realized that I uploaded the wrong file Fusion file (new file attached).  Technically they are the same, just a different end mill of the same size.  Just a few questions:



1.  On the correct file with a different 1/8" end mill, I had to reduce the angle to 1 degree.  Not sure why the 5-degree setting you used did not work.

2.  Your reduced federate is 3.75 ipm, my system default is 6 imp.  Did you override this setting.

3.  Lastly, is a reduced feed distance of .025" enough.  I have limited experience with this and curious if it should be like .050





Reduced Feed Radius.jpg


0 Likes
Message 4 of 5

programming2C78B
Mentor
Mentor

The feed distance is situationally dependent. Watch the simulation to ensure it slows down before the engagement angle increases too much

Please click "Accept Solution" if what I wrote solved your issue!
0 Likes
Message 5 of 5

richardsalzman
Collaborator
Collaborator

Thanks Laurens.  That worked great!  Thanks for your help!
