Unable to Select Path in SVG
There are breaks in the profile, take a look at this thread for help on finding the problems.
Mark
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
Here's a clue to the problems.
Mark.
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
That is my favorite technique for finding gaps. Using that very technique, there are two gaps in your SVG. One at the top:
and another at the bottom:
by deleting those two segments and replacing them with lines or curves, the profile is OK:
Jeff
Jeff Strater
Engineering Director
It's hard to say, exactly, what the problem is. Most likely it is that AI is a bit sloppy on tolerances, and the points and curves don't line up exactly. AI can afford to be sloppy, but Fusion cannot. I don't know AI at all, so I don't know if there are any snapping tools available that can assure that the curves and points match up exactly.
Admittedly, Fusion could be better about this and try to repair this condition, but today it does not do this repair.
Jeff
Jeff Strater
Engineering Director

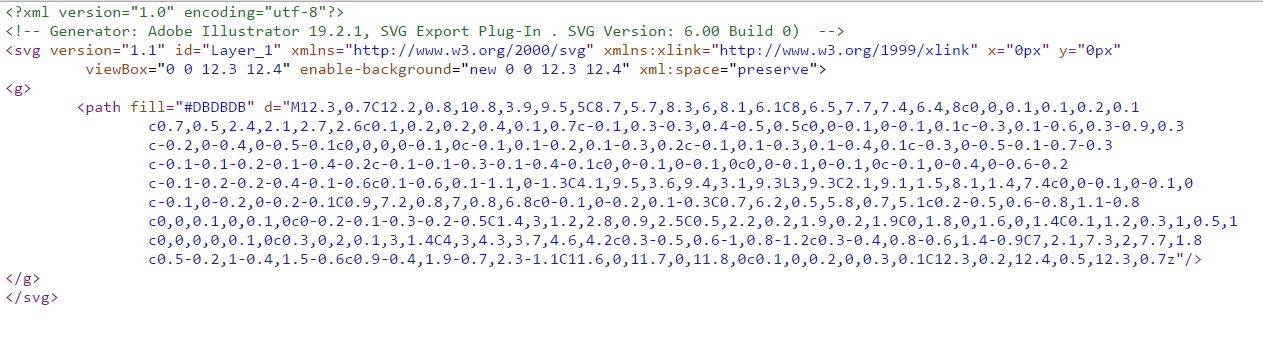

The file accuracy is only one decimal place, now it's not as bad as that might seem as the file's in pixels so 1 pixel is 1/90" or 0.0111 so the file is accurate to about 0.001111" and that's not always going to be good enough.
Mark
Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
That's it!

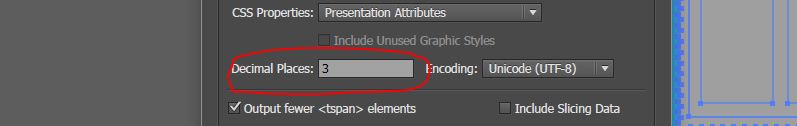

Easiest method. Just make sure you're good on the AI end, and when you export, choose "3" for Decimal Points
I appreciate it guys, good job!
