Simple question: How do I align sketch objects to midpoints of lines

autodesk
Enthusiast
Enthusiast

I am making a sketch with something like a circle in the middle of a rectangle, but I can't figure out how to do this with constraits.  Can someone answer this?

Thanks.

0 Likes
Accepted solutions (1)
35,241 Views
3 Replies
Replies (3)
Message 2 of 4

schneik-adsk
Community Manager
Community Manager
Accepted solution
I would draw a line from one corner of the rectangle to another, then select this line and from the context menu make it construction. Next I would start the constraint command and select the line and the center-point of the circle, and thens elect the midpoint command. this would make the circle at the center of the rectangle. Was this what you were looking for? Posting a picture might help?
Kevin Schneider
Message 3 of 4

Macro.Liu_Autodesk
Alumni
Alumni

If you just want to draw a circle in the middle of a rectangle, then the way Kevin provided should help. Another possible way for your reference:

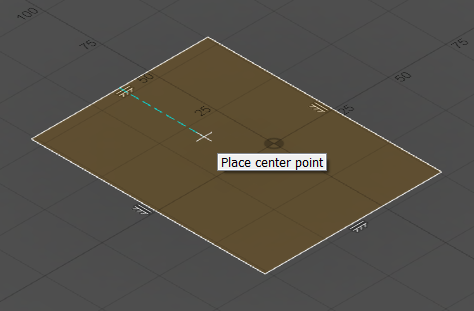

1. Invoke Center Diameter Circle command and hover the mouse over the mid point of one edge of the rectangle - MidPoint shows, and then move the mouse to the center - Reference line shows.







2. Continue to move the mouse to the mid point of the other edge - Midpoint shows. And move the mouse towards the center - Reference line shows







3. When the mouse is at the center, two Reference line will show - Now click to specify the center and draw the circle.




Hope that's what you want. If not, please show us snapshot.



Thanks,

Macro Liu (Fusion 360 QA)

0 Likes
Message 4 of 4

techboycr
Observer
Observer

Indeed!! this is the solution.



It works like a charm.
