Hi,

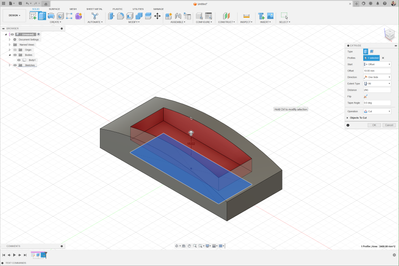

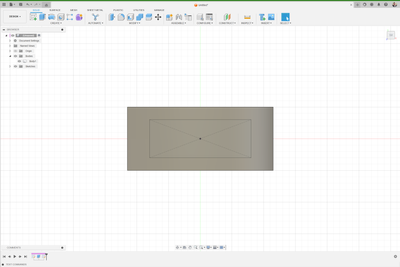

Could anyone please explain how I can extrude the pocket in the picture, but have the base of the pocket curved like the top



Thanks

Richie



0 Likes
Accepted solutions (2)
454 Views
7 Replies
Replies (7)
Message 2 of 8

g-andresen
Consultant
Consultant

Hi,

What do you want to achieve?
with Modify > offset face you can change the depth of the pocket.



share the file

File > export > save as f3d on local drive > attach to post



günther

0 Likes
Message 3 of 8

Drewpan
Advisor
Advisor
Accepted solution

Hi,



Create your shape from the side.


Extrude the shape


Create a sketch of the bit you want cut out.


Extrude cut offset from the plane.


Job done.




Cheers



Andrew

0 Likes
Message 4 of 8

Richie_B
Enthusiast
Enthusiast

yes that's what I get but I would like the bottom of the pocket to be curved as well

0 Likes
Message 5 of 8

Richie_B
Enthusiast
Enthusiast

thanks for the reply. I think I have just figured it out using ' Start from object '

0 Likes
Message 6 of 8

Richie_B
Enthusiast
Enthusiast

Thanks for the help. I have worked it out (see above)

0 Likes
Message 7 of 8

laughingcreek
Mentor
Mentor
Accepted solution

extrude from-

0 Likes
Message 8 of 8

Richie_B
Enthusiast
Enthusiast

That's great, Thankyou
