I am trying to add extrusion to an existing part.
It need to be placed a set distace from the top.
How do I measure down for placement?

Randall

0 Likes
906 Views
11 Replies
Replies (11)
Message 2 of 12

simsworx
Contributor
Contributor

Personally, I would create an Offset Plane from the Top of the Model (You can define the distance), then create a sketch of the feature that needs to be extruded. Extrude down toward the Top of the Model as Join.



Otherwise, can you export and share your model here so we can take a look at what you're trying?

0 Likes
Message 3 of 12

TheCADWhisperer
Consultant
Consultant

@leaning_r

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

I doubt there is any need to create any offset work planes.

0 Likes
Message 4 of 12

leaning_r
Explorer
Explorer

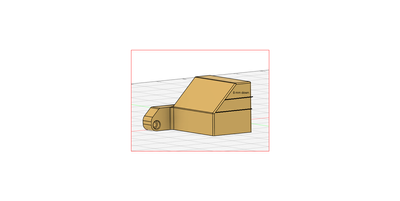

Needs to be placed on the odd shapped edge 8mm down...



0 Likes
Message 5 of 12

g-andresen
Consultant
Consultant

Hi,

What extrusion and what profile are you talking about?



günther

0 Likes
Message 6 of 12

leaning_r
Explorer
Explorer


I need it a spec distance from the top. But I am unsure of the process...

0 Likes
Message 7 of 12

g-andresen
Consultant
Consultant

Hi,

Please mark the profile and the plane in which the extrusion should start



günther

0 Likes
Message 8 of 12

TheCADWhisperer
Consultant
Consultant

@leaning_r

Your Sketch5 size and position is not fully defined.  You should fully define all geometry.

Sketch14 and 15 do not make logical sense.

Sketch16 is not fully defined.

Sketch24 is not fully defined.



Would you like to learn how to do all of this correctly with step-by-step instructions?

0 Likes
Message 9 of 12

leaning_r
Explorer
Explorer

Sure, sounds great!

0 Likes
Message 10 of 12

TheCADWhisperer
Consultant
Consultant

@leaning_r wrote:

Sure, sounds great!


OK, let's get started.

Start a new file.

Start a new sketch on the YZ plane and orient the view cube as shown.

Sketch the two rectangles as show below...  (where did you get that strange 39.69624671 dimension?)

Are you sure that you didn't mean 17.7+22=39.2 because that isn't how your model measures.


Attach your file here for next set of steps.

Message 11 of 12

leaning_r
Explorer
Explorer

The 39..... measurement was arbitrary.

0 Likes
Message 12 of 12

TheCADWhisperer
Consultant
Consultant

@leaning_r

You didn't follow my instructions about the placement of the rectangles.

Nevertheless we will continue...



Extrude the smaller rectangle symmetrically 88.7 as shown below...




Turn the visibility of Sketch1 back on.






Extrude the larger rectangle symmetrically a distance of 37...




Attach your progress here.

0 Likes
