MAKING A FLAT OBJECT CURVED

Anonymous

MAKING A FLAT OBJECT CURVED

Anonymous
Not applicable

Hi All;



I have a problem in a certain file.



I have an object that I have created. It has been made from different bodies and has been joined together.

Its a flat looking object but I want to convert the object into a slightly curved object.



How can I do this?

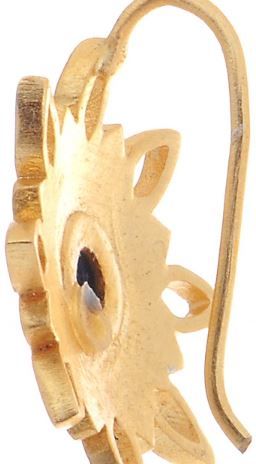

I have attached a picture of the pc I made on fusion and the original pc I am trying to replicate.
















Kindly help me with the same.



Thanks!

Ila

0 Likes
Reply
Accepted solutions (1)
6,650 Views
9 Replies
Replies (9)

TheCADWhisperer
Consultant
Consultant

The easiest way would be to model in finished form.



Trim and Thicken spherical surfaces.

0 Likes

Anonymous
Not applicable
Hi,

Thanks so much. Would you please guide me as to how to do that.

Thanks so much!
0 Likes

TheCADWhisperer
Consultant
Consultant

Can you File>Export your *.f3d file to your local drive and then Attach it here to a Reply?

0 Likes

Anonymous
Not applicable
Hey,

Thanks so much.
0 Likes

TrippyLighting
Consultant
Consultant

There is no file attached 😉


EESignature

0 Likes

mufadal89
Advocate
Advocate

You can try this.

Take the outline of the profiles and make a sketch.

Project that sketch on to a curve surface , the curvature with which you want to have that part to be.

Then use the projected outlines to make your new part.

0 Likes

Anonymous
Not applicable
Will try that out and let you know. Thanks so much!
0 Likes

TrippyLighting
Consultant
Consultant
Accepted solution

Most of what you need is already in your model.



Roll the timeline back in the attached model, move it forward one step at a time and see if you can make sense of it.

This is the rendered end result:



Glass Flower.png


EESignature

1 Like

Anonymous
Not applicable

Hey this seems to be working!



Thanks so much!

And also everyone for the help!



🙂

0 Likes
