Issue with stitching body

danotranto
Contributor
Contributor

I have this guitar body made from lofting. I had patched and stitched the body and it only shows one body in the menu, but it is behaving like there are more than one and that the stitch did not work (in section analysis the body is still just 2d surfaces).

Also any tips on how to loft things like this would be greatly appreciated!

0 Likes
Accepted solutions (1)
754 Views
12 Replies
Replies (12)
Message 2 of 13

jeff_strater
Community Manager
Community Manager

I don't have time right now to dig into the design, but the Stitch command itself shows where the problems are.  You have one on each end of the body.



On the neck end:

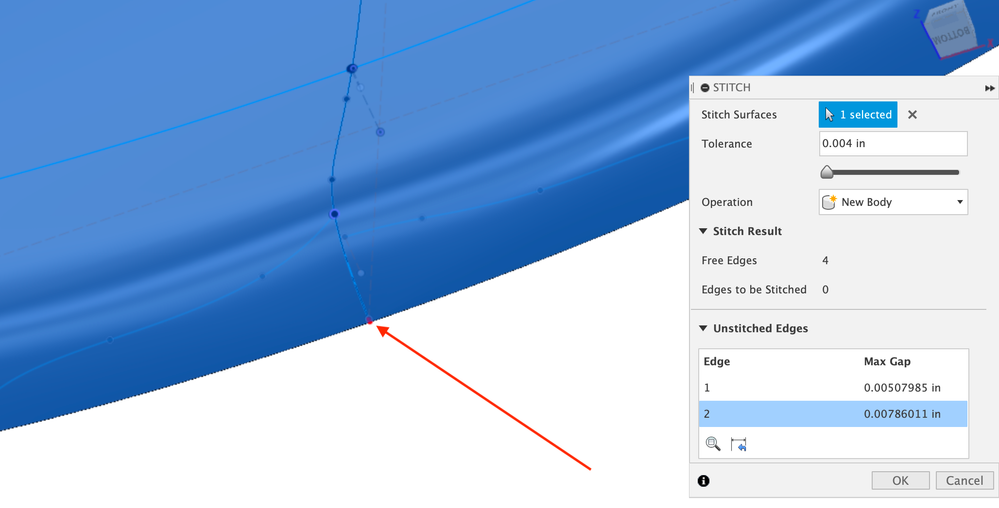

Screen Shot 2022-05-27 at 4.44.18 PM.png



zooming in:

Screen Shot 2022-05-27 at 4.44.28 PM.png



On the other end, same thing:

Screen Shot 2022-05-27 at 4.45.01 PM.png



again, zooming in:

Screen Shot 2022-05-27 at 4.45.09 PM.png



so, find the features that caused those openings.  If you can identify which specific feature caused this, it will help others to help you.


Jeff Strater
Engineering Director
0 Likes
Message 3 of 13

davebYYPCU
Consultant
Consultant

Easy to find, Jeff, Sketch 4 is not connected to the other sketches and is wide open, the loft shrinkwrapping has opened the gap.






Mmmm.



I don't understand the extrudes / Patches that were deleted.



Might help....







0 Likes
Message 4 of 13

danotranto
Contributor
Contributor

Hi,

Thank you for taking a look at that.

I have attempted to redo the entire file (geometry was too weird to patch in those two small gaps), and this time I can't figure out what is causing this loft on the right side to fail (it will not loft to the profile on the Y axis, it only lofts "flat" to the centerline when I select the curved face of the other side to be the last portion of the loft.



How do I go about trouble shooting lofts made with splines?





e65wkEN

0 Likes
Message 5 of 13

danotranto
Contributor
Contributor

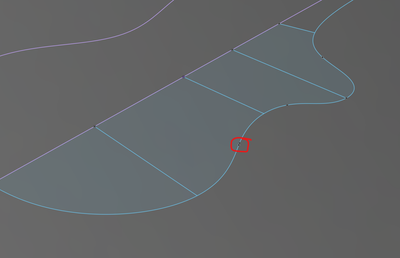

I was able to create one half of the loft by creating two ruled surfaces.  I then delete the ruled surface in the middle and try to create the loft on the other side but it doesn't recognize the loft edge in the center.
