How do I create longitudinal grooves wrapped around a cylinder?

Anonymous
Not applicable

I'm new to Fusion and having trouble figuring this one out.


I need to add shallow V grooving longitudinally completely around a cylinder. A gentle nudge would be greatly appreciated.



Thanks!

0 Likes
Accepted solutions (2)
5,832 Views
9 Replies
Replies (9)
Message 2 of 10

HughesTooling
Consultant
Consultant



 OK reread what you're after extrude cut a V then use circular array.


Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Message 3 of 10

JamieGilchrist
Autodesk
Autodesk

create two sketches

1 is the path around the cylinder

2 is the trangle for the "V" goove



Sweep the triangle



or



skip the 1st sketch and use the revolve command; the triangle as your profile and the axis of the cylinder (may need to create a construction axis for this if the cylinder is off the main origin location)






let me know if this gets you there or if you need a little more nudging.



EDIT:  rereading, Marks solution is the right one for longitude groove, mine is a groove lattitudinal to the cylinder.



hope this helps

hope this helps,


Jamie Gilchrist
Senior Principal Experience Designer
Message 4 of 10

HughesTooling
Consultant
Consultant

Ever feel like this. A few pictures would make all the difference!


Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


0 Likes
Message 5 of 10

Anonymous
Not applicable

Sorry about that.



Mark is on the right track with the first post, but I can't figure out how to incorporate that in my current model.



The area highlighted in blue needs to have longitudinal v grooves along the long axis that wrap radially around just like your first post shows. It's grooved for gripping.




0 Likes
Message 6 of 10

Anonymous
Not applicable

think transmission spline but on a much smaller scale 🙂

0 Likes
Message 7 of 10

JamieGilchrist
Autodesk
Autodesk
Accepted solution

Like this?  I'll post the Fusion model so you can see how I built this.

 Edit:  attached my model that essentially follows Marks workflow.  Hope this helps.

spline shaft.png

hope this helps,


Jamie Gilchrist
Senior Principal Experience Designer
Message 8 of 10

HughesTooling
Consultant
Consultant
Accepted solution

What I'd do is create a plane where you want the splines to start.




Draw the profile of the grove on that plane. Then extrude cut

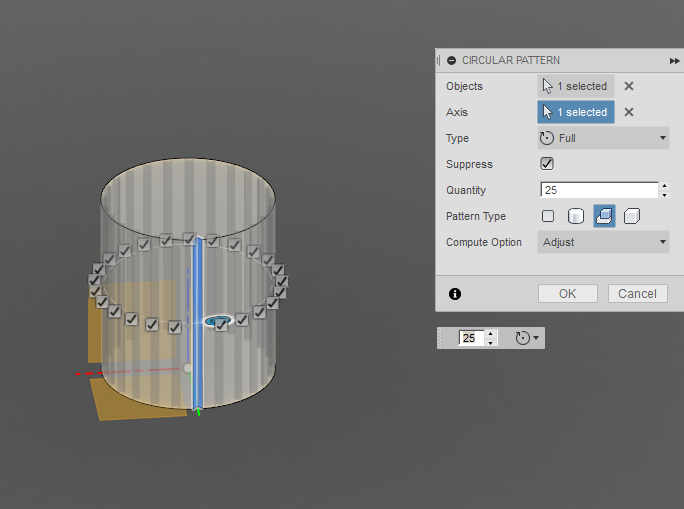

Then make a cicular array, for pattern type select Faeture and select the extrusion from the time line. For axis select one of the other round parts set the number of copies then OK.




Example file attached.

Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Message 9 of 10

Anonymous
Not applicable

Thank you both!  That's exactly what I needed.

0 Likes
Message 10 of 10

HughesTooling
Consultant
Consultant

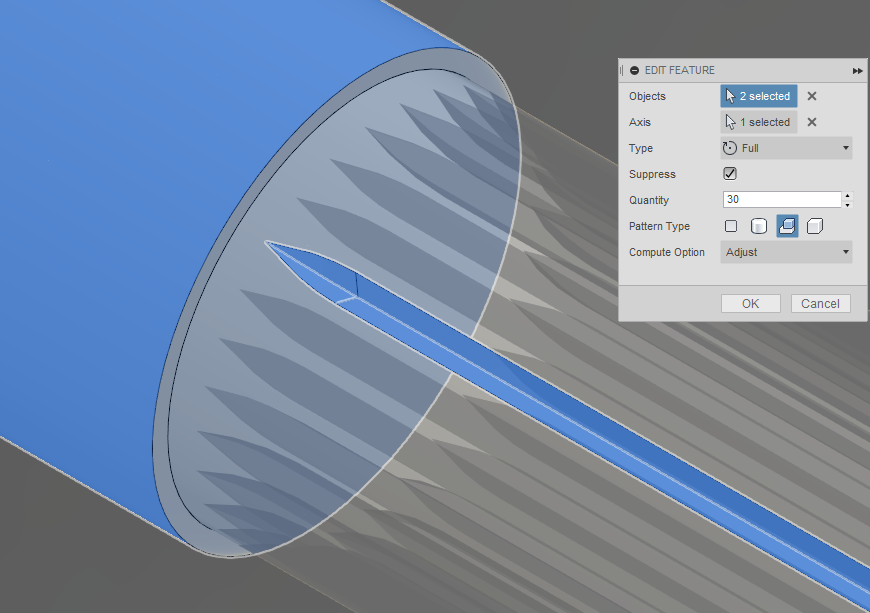

Just another tip on Circlar array, you can select more than one feature if you need to. You can make your splines look more realistic if you plend the end out as if thay where milled like this.





File attached.

Mark Hughes
Owner, Hughes Tooling
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature
